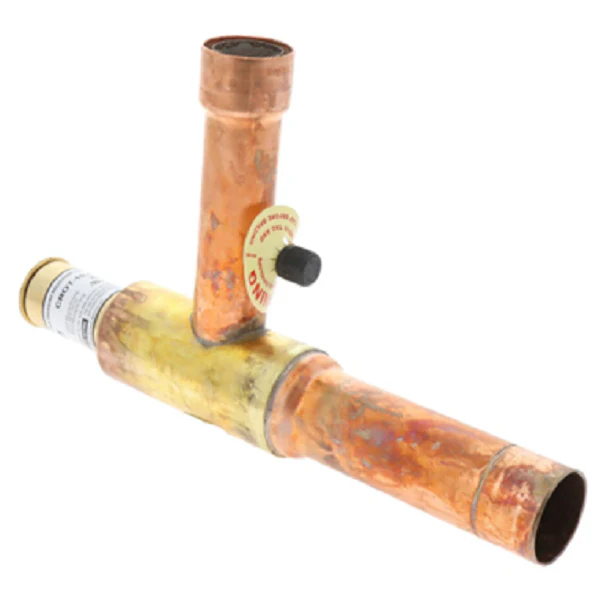

Sporlan 900612P Regulator
The Sporlan 900612P (Model CROT-10 0/60) is a high-performance crankcase pressure regulator designed to shield compressor motors from high-load stress. By limiting the downstream suction pressure to a maximum setting during hot pull-downs or after defrost cycles, this valve prevents motor overloading and ensures system longevity. This specific model features a 1-3/8" ODF solder connection and an integrated access valve (denoted by the "T") for simplified field pressure monitoring. Built for refrigeration duty, the CROT-10 utilizes a 1.218-inch port and a robust brass bellows element to maintain a stable 0/60 psig adjustment range even under fluctuating suction line conditions.
For service technicians and contractors, the Sporlan CROT-10 0/60 1-3/8 ODF provides a reliable modulation point between the evaporator and compressor. Its hermetic construction and metal-to-metal seating ensure a leak-proof seal, while the internal 40-mesh strainer protects the seat from system debris. With a maximum rated pressure of 400 psig, this regulator is engineered for technical precision in commercial refrigeration systems where precise suction pressure control is non-negotiable.
Key Benefits:- Compressor Protection: Automatically throttles suction gas to keep crankcase pressure below the motor's maximum limit.
- Integrated Pressure Tap: Features a 1/4" SAE access valve for fast and accurate gauge readings during commissioning.
- Durable Construction: High-grade brass body and copper connections allow for seamless brazing with a wet-rag heat sink.
- Anti-Chatter Device: Internal engineering dampens compressor pulsations to extend the life of the brass bellows.
- Precise Tuning: Easy-access adjustment screw allows for a 6 psi change per turn, ensuring fine-tuned pressure setpoints.
- Where should the CROT-10 be installed? It must be installed in the suction line, ideally downstream of all other controls and as close to the compressor as possible.
- What does the 'T' in CROT-10 signify? The 'T' indicates that this model includes an access valve (Schrader port) on the inlet side for pressure measurement.
- Can this be used on R-404A or R-448A systems? Yes, the brass and copper components are compatible with common HFC and HFO refrigerants and standard POE/mineral oils.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
