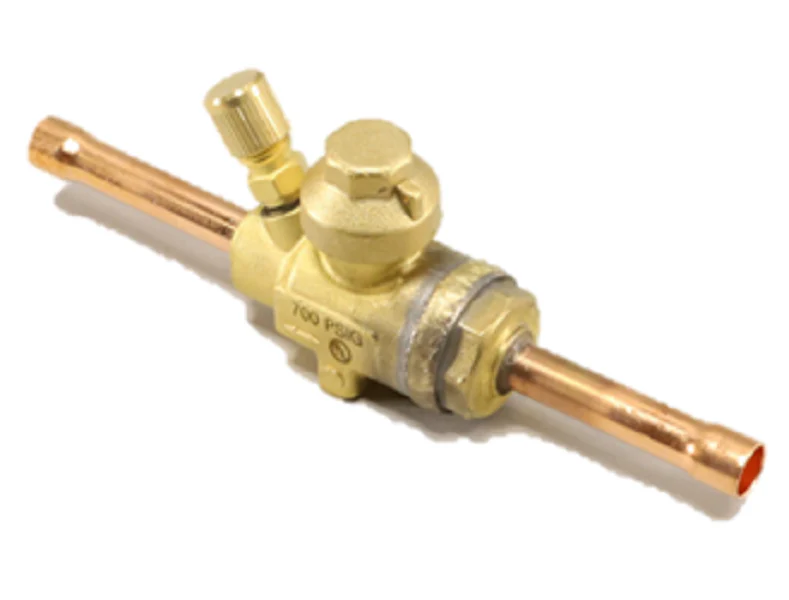

Sporlan 502054 Ball Valve
The Sporlan 502054 Ball Valve is a 3/8" ODF full-port isolation solution engineered for high-performance HVACR applications. Built with a forged brass body and robotically welded joints, this bi-directional valve ensures positive, leak-free shut-off in either flow direction. It features dual Teflon seals surrounding a polished brass ball, eliminating the need for synthetic O-rings while providing a secondary seal against foreign materials. The quarter-turn actuation with a stainless steel stop plate allows technicians to verify the valve position instantly, even during system evacuation through the internal relief port design.
Designed for versatile field implementation, this isolation ball valve integrates extended copper fittings to protect the internal seals during the brazing process. It supports a wide operational window with a 700 psig design working pressure and a service temperature range of -40°F to +325°F. The Sporlan 502054 is compatible with a broad range of CFC, HCFC, and HFC refrigerants, including R-22, R-134a, R-404A, and R-410A, making it a reliable standard for liquid, suction, and discharge lines.
Key Benefits- Full Port Design: Minimizes pressure drop across the 3/8" ODF connection for maximum system efficiency.
- Dual Teflon Stem Seals: Features an internal packing nut for a primary seal without relying on degradable synthetic components.
- Internal Relief Port: Prevents internal high-pressure trapping, ensuring a positive shut-off in any flow direction.
- Bottom-Loaded Stem: Enhances safety by preventing the stem from being pulled or blown out under pressure.
- Universal Compatibility: UL listed for use with common refrigerants and high-pressure R-410A systems.
- Can this valve be installed in any orientation? Yes, the 502054 is non-directional and functions effectively in any horizontal or vertical position.
- Do I need to disassemble the valve before brazing? No, the welded body joint design means it should not be disassembled. Always wrap the body with a wet rag to dissipate heat during installation.
- Is this valve rated for suction line service? Yes, the full-port construction and 700 PSI rating make it suitable for liquid, suction, and discharge gas applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
