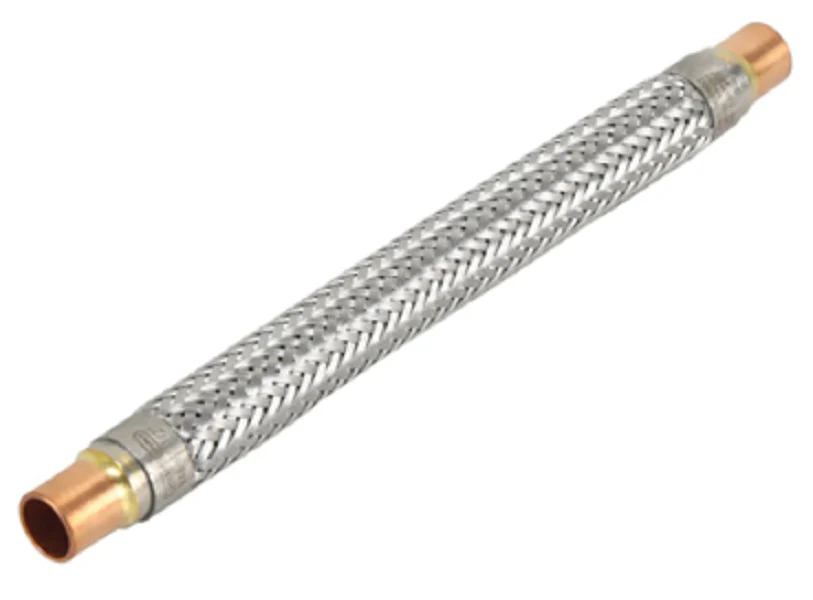

Sporlan 475443 Absorber
When you troubleshoot copper lines prone to work hardening and stress fractures, the Sporlan 475443 Vibration Absorber is the standard solution for isolating compressor-generated harmonics. This 1/2" ODF vibration absorber features a high-tensile stainless steel hose protected by a rugged stainless steel braid, engineered specifically to dampen the mechanical oscillations that lead to refrigerant leaks. At a precise 9-inch length, this component provides the necessary flexibility to counteract both vertical and horizontal displacement in high-pressure commercial refrigeration and air conditioning systems. The 475443 is rated for a maximum working pressure of 650 PSI and is UL listed, ensuring it handles the thermal expansion and high-velocity discharge common in R-410A and R-404A applications. For contractors, the solid copper ODF solder connections facilitate a clean, leak-free transition from the vibration-isolated section to the rest of the hard-drawn piping.
Key Benefits for Technicians:- Durable Construction: Built with a corrosion-resistant stainless steel hose and braid to withstand harsh machine room environments.
- System Protection: Minimizes the risk of copper pipe stress fractures by absorbing mechanical noise and harmonic vibration.
- High Pressure Compatibility: Safely operates in systems with pressures up to 650 PSI, making it suitable for modern high-pressure refrigerants.
- Ease of Installation: Features 1/2" ODF copper fittings for standard brazing techniques without the need for specialized adapters.
- Where is the best placement for the Sporlan 475443? It should be installed on the suction and discharge lines as close to the compressor as possible, aligned parallel to the shaft to maximize vibration dampening.
- Can this absorber be used in any mounting orientation? While it can be mounted in various positions, it must be installed in a straight line and supported to prevent it from carrying the weight of the connected piping.
- Is this compatible with ammonia systems? No, while the hose is stainless steel, the copper fittings are not compatible with ammonia; this is strictly for standard CFC, HCFC, and HFC refrigerants.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
