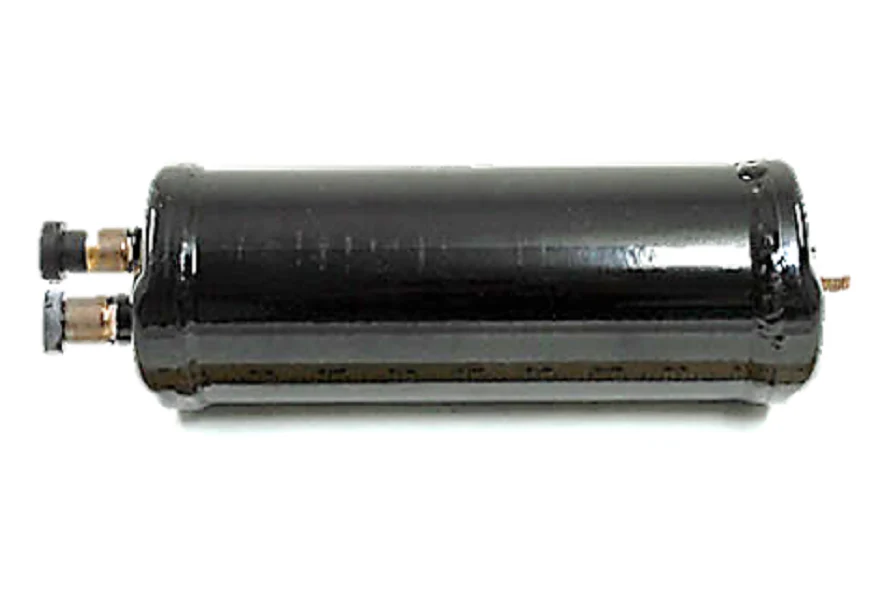

Sporlan 470106 Accumulator
The Sporlan 470106, model VA-31-4-S, is a high-performance vertical suction line accumulator engineered for reliable compressor protection in demanding HVACR applications. Designed with 1/2" ODF solid copper connections, this 3-inch diameter vessel effectively captures excess liquid refrigerant, preventing liquid slugging and oil dilution that can lead to premature compressor failure. Its internal U-tube design ensures maximum refrigerant flow with minimal pressure drop, while the inlet flow deflector directs incoming fluid against the vessel wall for controlled expansion and smooth tangential flow. This unit features a precision-calibrated metering orifice (typically 0.055") protected by a 50x60 mesh screen to facilitate consistent oil return to the crankcase. Optimized for use with R-410A and R-22, the VA-31-4-S offers a holding capacity of approximately 36 oz. and 40 oz. respectively, making it an essential component for heat pumps and refrigeration systems prone to varying load conditions or defrost cycles.
Key Benefits:- Enhanced Compressor Longevity: Eliminates catastrophic liquid slugging by trapping liquid refrigerant before it enters the suction stage.
- Optimized Oil Management: The balanced U-tube and metering orifice assembly ensure a steady return of lubricant to maintain proper crankcase levels.
- Superior Corrosion Resistance: Powder-coated finish exceeds 500-hour salt spray testing, providing durability in harsh environments.
- System Pressure Safety: Equipped with an integral 430°F fuse plug to safely release internal pressure during extreme temperature events.
- Low Pressure Drop: Engineered flow paths maintain system efficiency without significantly impacting suction line velocity.
- Where should the Sporlan VA-31-4-S be installed? It must be installed vertically in the suction line, as close to the compressor as possible, between the evaporator outlet and the compressor inlet.
- How do I size this accumulator for a TXV system? For systems using a Thermostatic Expansion Valve, the accumulator should typically be sized to hold 50% of the total system refrigerant charge.
- Is this unit compatible with modern high-pressure refrigerants? Yes, it is rated for a design pressure of 355 psig, making it suitable for both R-22 and R-410A applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
