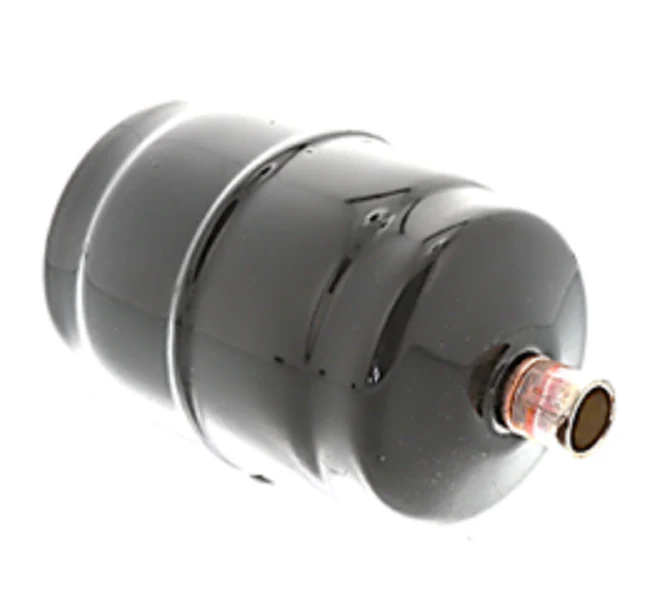

Sporlan 450303-001 Filter
The Sporlan 450303-001, also designated as the BF164S Bi-flow filter, is an industry-standard liquid line filter drier designed specifically for the rigorous demands of heat pump systems. Featuring a 1/2" ODF sweat connection, this 16-cubic-inch unit utilizes a high-capacity desiccant core to provide exceptional acid and moisture removal from refrigerant lines. Its unique internal check valves allow for efficient bi-directional refrigerant flow without the need for external bypass piping, ensuring that solid contaminants such as copper scale and sludge are captured in both heating and cooling cycles. This model is rated for a maximum working pressure of 650 PSI, making it fully compatible with R-410A, R-22, and other high-pressure HFC/HCFC systems. The rugged steel shell features a corrosion-resistant powder paint coating, tested for over 500 hours in salt spray environments to ensure durability in harsh outdoor installations. For technicians performing system cleanouts or scheduled maintenance, the Sporlan BF164S remains the professional choice for protecting compressor valves and expansion devices from premature failure.
Key Benefits for HVACR Technicians
- Internal Check Valve Logic: Delivers full bi-flow filtration for heat pumps, eliminating the cost and space required for multiple driers and external check valves.
- Advanced Desiccant Core: Specifically engineered for POE oil and mineral oil systems to maximize acid removal and prevent system contamination.
- High Pressure Performance: UL/ULc listed with a 650 PSI rating, ensuring safe operation with modern R-410A refrigeration and air conditioning equipment.
- Durable Solder Connections: Precision-machined 1/2" ODF copper ends facilitate fast, leak-proof brazing into the liquid line.
- Corrosion Resistance: High-grade epoxy powder coating prevents rust and degradation on the outdoor unit's liquid line.
Common Questions
Can the BF164S be used in standard AC-only systems?
While designed for bi-directional flow in heat pumps, this filter can be used in unidirectional systems; however, a standard Catch-All drier is typically more cost-effective for cooling-only applications.
Is this filter compatible with newer A2L refrigerants?
The Sporlan 450303-001 is compatible with a wide range of refrigerants, including HFCs and HCFCs. Always verify specific chemical compatibility with the system manufacturer before brazing into new low-GWP systems.
Does the installation direction matter?
Because this is a bi-flow filter drier, it can be installed in either direction within the liquid line, as the internal valves automatically direct flow through the desiccant core regardless of the cycle.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
