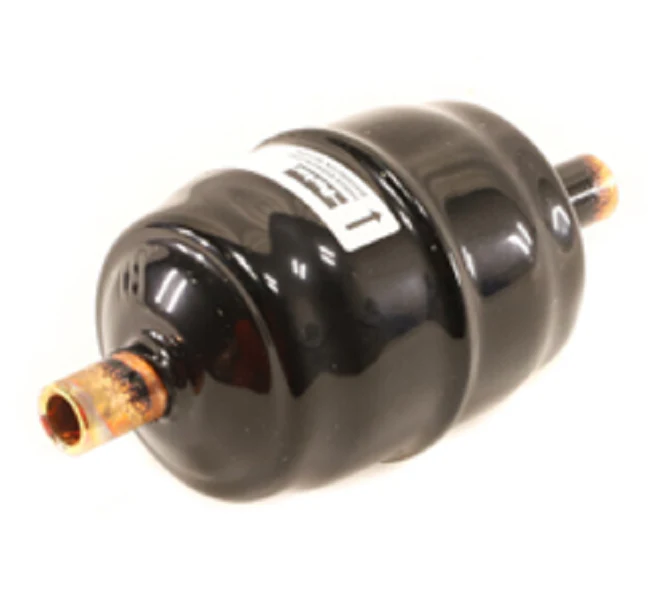

Sporlan 450273-001 Filter
The Sporlan 450273-001, also known as the LLD-032S, is a high-performance liquid line filter drier designed for HVACR systems with 1/4" ODF solder connections. This sealed model filter-drier features a 3 cubic inch desiccant volume utilizing a 100% molecular sieve core, making it highly effective for refrigerant moisture removal and acid retention. It is engineered to handle a wide range of refrigerants, including R-22, R-134a, R-404A, R-407C, and R-410A, with a maximum rated pressure of 650 psig. The ODF sweat fittings ensure a leak-proof field installation, providing critical protection for the expansion valve and compressor against solid contaminants, sludge, and organic acids. Weighing approximately 0.34 lbs, this compact refrigeration filter drier is a standard choice for both residential and light commercial services requiring maximum system reliability.
Key Benefits:- Complete Contaminant Control: Effectively captures moisture, acid, and foreign matter like scale and solder particles to prevent system corrosion.
- Durable Construction: Features solid copper connections and a powder-coated finish that surpasses 500-hour salt spray testing for corrosion resistance.
- High Pressure Rating: UL listed for up to 650 psig, making it fully compatible with high-pressure systems using R-410A.
- System Longevity: Protects high-value components by preventing the formation of varnish and oil breakdown products.
Is the LLD-032S compatible with POE oils?
Yes, the Sporlan LLD-032S is specifically designed for exceptional compatibility with polyolester (POE) oils used in modern HFC systems, as well as mineral and alkylbenzene oils.
When should this filter drier be replaced?
A 1/4" liquid line drier should be replaced whenever the refrigeration circuit is opened for service, a leak is repaired, or if a significant pressure drop is detected across the device.
Can this be used on suction lines?
No, this is a liquid line sealed model. Suction line filter driers (like the Sporlan Catch-All RS series) are designed with different flow characteristics to prevent excessive pressure drop before the compressor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $17.13
-65%$17.13
$6.00Sporlan 450273-001 Filter
The Sporlan 450273-001, also known as the LLD-032S, is a high-performance liquid line filter drier designed for HVACR systems with 1/4" ODF solder connections. This sealed model filter-drier features a 3 cubic inch desiccant volume utilizing a 100% molecular sieve core, making it highly effective for refrigerant moisture removal and acid retention. It is engineered to handle a wide range of refrigerants, including R-22, R-134a, R-404A, R-407C, and R-410A, with a maximum rated pressure of 650 psig. The ODF sweat fittings ensure a leak-proof field installation, providing critical protection for the expansion valve and compressor against solid contaminants, sludge, and organic acids. Weighing approximately 0.34 lbs, this compact refrigeration filter drier is a standard choice for both residential and light commercial services requiring maximum system reliability.
Key Benefits:- Complete Contaminant Control: Effectively captures moisture, acid, and foreign matter like scale and solder particles to prevent system corrosion.
- Durable Construction: Features solid copper connections and a powder-coated finish that surpasses 500-hour salt spray testing for corrosion resistance.
- High Pressure Rating: UL listed for up to 650 psig, making it fully compatible with high-pressure systems using R-410A.
- System Longevity: Protects high-value components by preventing the formation of varnish and oil breakdown products.
Is the LLD-032S compatible with POE oils?
Yes, the Sporlan LLD-032S is specifically designed for exceptional compatibility with polyolester (POE) oils used in modern HFC systems, as well as mineral and alkylbenzene oils.
When should this filter drier be replaced?
A 1/4" liquid line drier should be replaced whenever the refrigeration circuit is opened for service, a leak is repaired, or if a significant pressure drop is detected across the device.
Can this be used on suction lines?
No, this is a liquid line sealed model. Suction line filter driers (like the Sporlan Catch-All RS series) are designed with different flow characteristics to prevent excessive pressure drop before the compressor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
