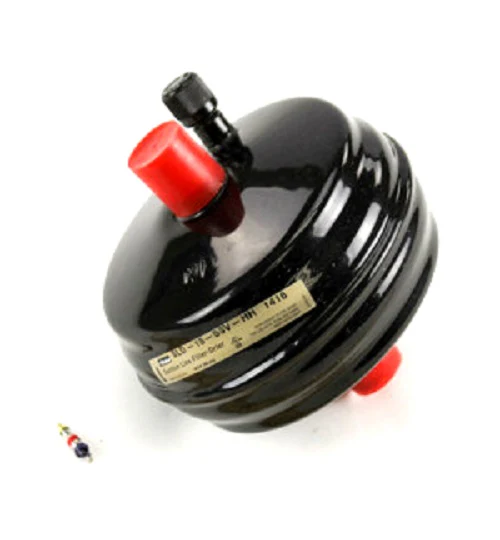

Sporlan 450040-001 Drier
Install the Sporlan 450040-001 (Model SLD13-5SVHH) to provide critical compressor protection during high-acid system clean-ups. This 5/8" ODF suction line filter drier features a high-capacity 13 cubic inch core specifically engineered for burnout remediation and the removal of harmful moisture, sludge, and organic acids. Designed with a solid core desiccant blend, the SLD13-5SVHH suction drier maintains exceptionally low pressure drop to ensure efficient refrigerant flow and prevent oil return issues often associated with restricted suction lines. The compact shell design allows for immediate HVAC system clean-up in tight spaces, while the integrated access valves permit technicians to accurately monitor pressure differentials across the core. Compatible with R-410A, R-22, and other common refrigerants, this Sporlan suction filter utilizes solid copper sweat connections for reliable, leak-free brazing. Rely on this refrigeration suction line drier to stabilize chemistry and extend the service life of replacement compressors after a catastrophic motor failure.
Key Benefits- High Acid Capacity: The SLD13-5SVHH utilizes a specialized desiccant blend to neutralize corrosive acids and prevent premature compressor failure.
- Optimized Flow Rates: Engineering ensures a limited pressure drop, preserving system efficiency and protecting the volumetric capacity of the compressor.
- Dual Access Valves: Built-in ports facilitate easy pressure measurement, allowing contractors to verify when a core change-out is required.
- Corrosion Resistance: Features a durable powder-coated finish that passes the 500-hour salt spray test for long-term reliability in harsh environments.
- Compact Cut-Out: Short overall length simplifies installation in restricted mechanical rooms or crowded cabinet interiors.
When should the Sporlan SLD13-5SVHH be removed from the system?
As a veteran technician knows, suction line driers are primary clean-up tools. They should be monitored via the access valves and typically removed or replaced when the pressure drop exceeds 2-3 psi, or once system acid tests confirm the circuit is clean.
Is the SLD13-5SVHH compatible with POE and mineral oils?
Yes, the Sporlan 450040-001 is designed to work effectively with both legacy mineral oils and modern POE lubricants, making it a versatile choice for R-410A system clean-up and older R-22 retrofits.
Can this drier be used in a bi-flow heat pump application?
While this unit is designed for the common suction line, care must be taken to ensure it is installed where flow is unidirectional. In heat pumps, it is typically placed in the suction line between the reversing valve and the compressor to ensure protection in both heating and cooling modes.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
