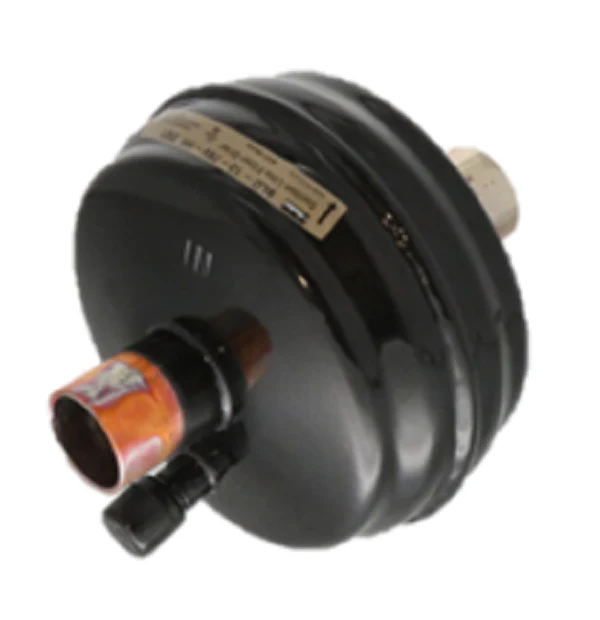

Sporlan 450022-001 Drier
The Sporlan 450022-001 Drier, specifically the SLD13-7SVHH, is a high-performance suction line filter drier engineered for critical system clean-up following a compressor burnout. Featuring a 7/8" ODF sweat connection and a 13-cubic-inch desiccant volume, this unit utilizes the specialized HH charcoal core. This porous molded core is professionally formulated with a blend of molecular sieve and activated alumina to aggressively remove moisture, sludge, and harmful organic acids that threaten compressor longevity. Optimized for R-410A and R-22 systems, the SLD series offers a high flow rate with a low pressure drop, ensuring that refrigeration cycles remain efficient even during intensive filtration. Its compact shell design allows for easy field installation in restricted spaces, providing a reliable first line of defense for both residential and commercial HVACR applications. By capturing varnish and solid debris, the SLD13-7SVHH 7/8" ODF SucDrier prevents critical component failures and maintains refrigerant purity throughout the recovery process.
Key Benefits:- High Acid Removal: The HH-style charcoal core is specifically designed to neutralize acidic contaminants and bypass sludge after a radical motor burnout.
- Optimized Flow: Engineered for minimal suction line pressure drop, maintaining high system capacity while protecting the compressor from debris.
- Versatile Compatibility: Seamlessly integrates with R-410A, R-22, R-134a, and R-404A refrigerants for broad application across different platforms.
- Durable Construction: Features U.L. Listed 650 PSIG working pressure and solid copper fittings for a leak-proof ODF solder connection.
- Can this be used for permanent installation? While designed for clean-up, it is commonly used until pressure drop indicates the system is clear. Refer to Sporlan’s suction line drier guidelines for specific pressure drop limits.
- What is the purpose of the HH core? The "HH" designation indicates a charcoal blend core, which is superior at removing wax and products of lubricant breakdown compared to standard liquid line cores.
- Is this unit bi-directional? No, this sealed suction drier is designed for unidirectional flow in the suction line. Ensure proper orientation during the brazing process.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $70.02
-65%$70.02
$24.51Sporlan 450022-001 Drier
The Sporlan 450022-001 Drier, specifically the SLD13-7SVHH, is a high-performance suction line filter drier engineered for critical system clean-up following a compressor burnout. Featuring a 7/8" ODF sweat connection and a 13-cubic-inch desiccant volume, this unit utilizes the specialized HH charcoal core. This porous molded core is professionally formulated with a blend of molecular sieve and activated alumina to aggressively remove moisture, sludge, and harmful organic acids that threaten compressor longevity. Optimized for R-410A and R-22 systems, the SLD series offers a high flow rate with a low pressure drop, ensuring that refrigeration cycles remain efficient even during intensive filtration. Its compact shell design allows for easy field installation in restricted spaces, providing a reliable first line of defense for both residential and commercial HVACR applications. By capturing varnish and solid debris, the SLD13-7SVHH 7/8" ODF SucDrier prevents critical component failures and maintains refrigerant purity throughout the recovery process.
Key Benefits:- High Acid Removal: The HH-style charcoal core is specifically designed to neutralize acidic contaminants and bypass sludge after a radical motor burnout.
- Optimized Flow: Engineered for minimal suction line pressure drop, maintaining high system capacity while protecting the compressor from debris.
- Versatile Compatibility: Seamlessly integrates with R-410A, R-22, R-134a, and R-404A refrigerants for broad application across different platforms.
- Durable Construction: Features U.L. Listed 650 PSIG working pressure and solid copper fittings for a leak-proof ODF solder connection.
- Can this be used for permanent installation? While designed for clean-up, it is commonly used until pressure drop indicates the system is clear. Refer to Sporlan’s suction line drier guidelines for specific pressure drop limits.
- What is the purpose of the HH core? The "HH" designation indicates a charcoal blend core, which is superior at removing wax and products of lubricant breakdown compared to standard liquid line cores.
- Is this unit bi-directional? No, this sealed suction drier is designed for unidirectional flow in the suction line. Ensure proper orientation during the brazing process.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
