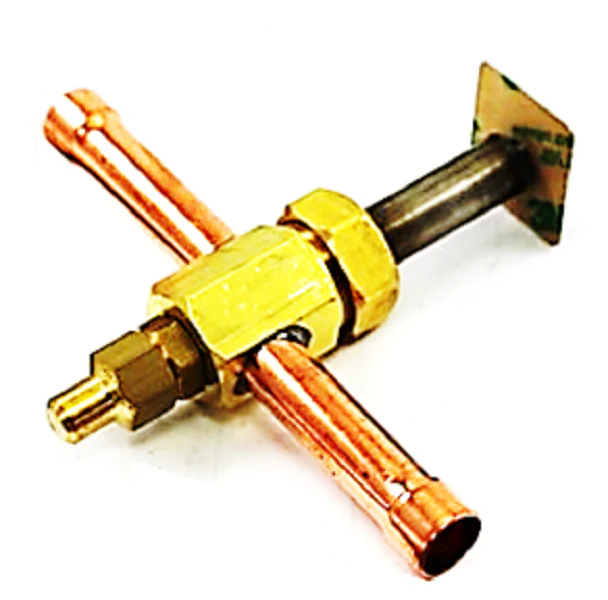

Sporlan 4267-00 Valve
The Sporlan 4267-00 Valve is a rugged, pilot-operated R26E64M 1/2" ODF NC solenoid designed for demanding commercial refrigeration and HVACR applications. This normally closed solenoid valve features a forged brass body and extended solder connections (ODF), allowing for direct brazing into the line without the need for disassembly, which protects internal components from heat damage during installation. Engineered for versatile system integration, the Sporlan 4267-00 is compatible with a wide range of CFC, HCFC, and HFC refrigerants, including R-22, R-134a, R-404A, and high-pressure R-410A. Its synthetic seating material ensures tight closing and positive shut-off, while the 3/16" port size provides reliable flow control in liquid, suction, or hot gas discharge lines. The valve is designed to work with MKC-1, OMKC-1, and PKC-1 series coils, offering excellent maximum operating pressure differential (MOPD) performance up to 500 psi, making it a staple for contractors prioritizing system integrity and ease of service.
Key Benefits- Extended ODF connections streamline the brazing process by eliminating the need for valve teardown during installation.
- Normally closed (NC) configuration ensures the valve remains securely shut when de-energized, preventing refrigerant migration.
- Compatible with R-410A and other common refrigerants, providing a standardized solution for modern high-pressure systems.
- Class F coil compatibility allows for high-temperature discharge service without the risk of premature coil failure.
- Pilot-operated disc construction enables full operation with minimal pressure differential, ideal for suction line applications.
Is the coil included with the Sporlan 4267-00?
Standard configurations for the R26E64M are typically sold as the valve body only. You must match it with the appropriate MKC-1 or PKC-1 coil based on your system's voltage requirements (e.g., 24V, 120V, or 240V).
Can this valve be mounted in any orientation?
For optimal performance, it is recommended to mount the valve in a horizontal line with the coil in an upright position; however, these units are designed to operate reliably when mounted on their side or in vertical lines if necessary.
What is the primary difference between the E6 and B6 series?
The E6 series, specifically the R26E64M, features extended copper connections to facilitate easier brazing, whereas the B6 series typically utilizes shorter connections that may require more careful heat management.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $174.16
-65%$174.16
$60.96Sporlan 4267-00 Valve
