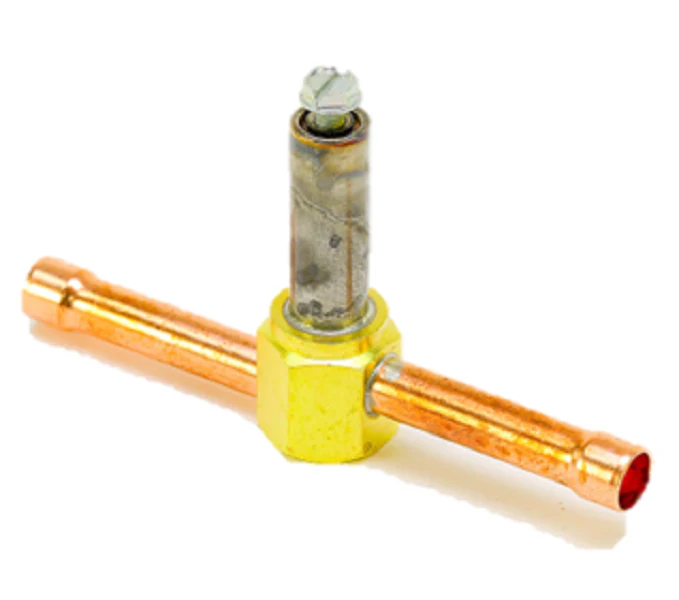

Sporlan 4263-00 Valve
The Sporlan 4263-00 (Model R16E33) is a high-performance normally closed solenoid valve designed for liquid, suction, and hot gas applications in commercial refrigeration and air conditioning systems. Engineered with a 3/8" ODF solder connection, this E3S130 series valve utilizes a direct-acting mechanism with a .101" port size, ensuring positive shut-off and reliable refrigerant flow control even in systems requiring a low pressure differential for full opening. The E series construction features extended copper ends, allowing technicians to braze without disassembly using standard low-silver or no-silver alloys, significantly reducing installation time in the field.
Built for durability in demanding environments, the Sporlan E3S130 is compatible with a wide range of refrigerants, including R-22, R-134a, R-404A, and R-507. Its synthetic seating material provides a bubble-tight seal to prevent migration, while the synthetic coated metal gaskets are specifically designed to minimize the risk of external leaks. This valve is designed for use with a Sporlan MKC-1 coil assembly (or Parker PKC-1) and supports a Maximum Operating Pressure Differential (MOPD) of 300 psi on AC power. Its rugged, simple design with minimal moving parts ensures long-term system integrity for both residential and commercial HVACR applications.
Key Benefits- Extended ODF Connections: Facilitates rapid installation by allowing brazing without the need to disassemble internal valve components.
- Synthetic Seating: Provides a high-integrity, tight-closing seal to ensure reliable refrigerant containment and system efficiency.
- Multi-Refrigerant Compatibility: Versatile design suitable for R-22, R-134a, and high-pressure HFC blends.
- Direct-Acting Performance: Delivers precise flow control for small fractional tonnage to mid-sized refrigeration systems.
- Flexible Mounting: Can be installed in horizontal, vertical, or side positions to accommodate tight mechanical room configurations.
Which coil is compatible with the Sporlan 4263-00 R16E33?
This valve is designed for use with the Sporlan MKC-1 or Parker PKC-1 coil assemblies. Ensure the voltage and frequency of the coil match your specific electrical service requirements before installation.
Does this solenoid valve require disassembly before brazing?
No, the E series features extended solder connections that dissipate heat, allowing for installation without disassembling the valve body. Using a wet rag or heat sink on the extensions is still recommended to protect the internal synthetic parts from excessive heat soak.
Can the R16E33 be used in suction line applications?
Yes, the Sporlan E3 series is suitable for suction line service because it is a direct-acting valve that does not require a minimum pressure drop to stay open, ensuring full flow in low-pressure conditions.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
