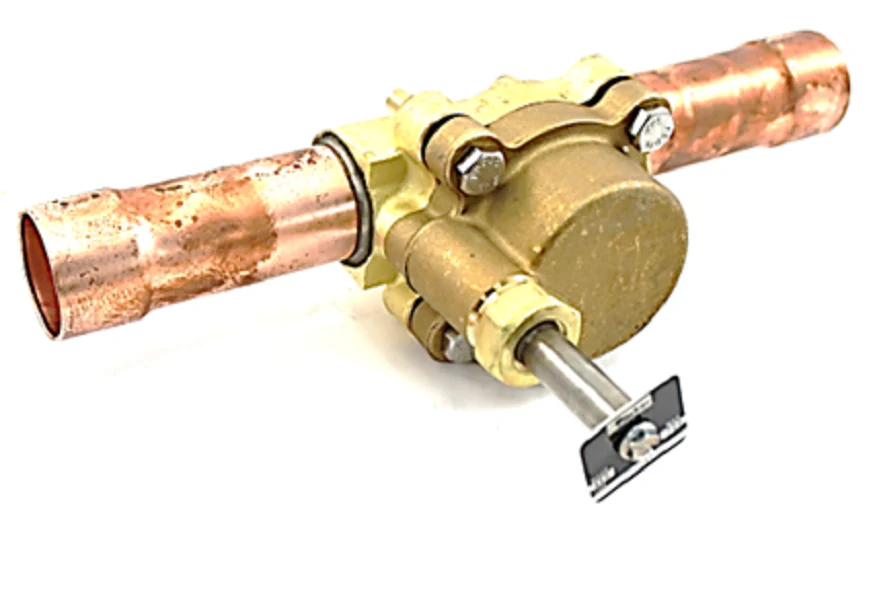

Sporlan 4186-00 Valve
The Sporlan 4186-00 Valve, specifically the R52E3511M model, is a heavy-duty, pilot-operated solenoid valve designed for high-capacity liquid, suction, or discharge service in commercial refrigeration and industrial cooling systems. This valve features 1-3/8" ODF solder connections, ensuring a secure, leak-proof integration into large-scale copper piping networks. Built with a robust brass body and stainless steel internal components, it is engineered to handle high Maximum Rated Pressure (MRP) requirements and maintain tight shut-off under varying pressure differentials. The E series design focuses on MOPD performance, allowing the valve to open reliably even under high-load conditions typical of heavy tonnage chillers or rack systems. This 1-3/8 inch solenoid valve is compatible with most common halogenated refrigerants and is a standard choice for technicians requiring a durable normally closed solenoid valve for precise refrigerant flow control and system isolation during pump-down cycles.
Key Benefits for Technicians
- High Flow Capacity: Large port design minimizes pressure drop across the valve, optimizing system efficiency in suction and liquid line applications.
- Field-Serviceable Design: The modular construction allows for rapid internal component inspection or replacement without braze joint removal.
- Synthetic Seating: Features high-grade synthetic seating materials to ensure positive shut-off and resistance to debris-related wear.
- Extended ODF Connections: Copper connections are designed to simplify the brazing process while protecting internal seals from heat damage.
- Multi-Refrigerant Compatibility: Reliable performance across a broad range of CFC, HCFC, and HFC refrigerants.
Common Installation and Application Questions
What is the maximum operating pressure differential for the Sporlan R52E3511M?
This valve is designed to operate effectively under high pressure differentials; however, specific MOPD ratings depend on the coil used. Always verify your coil voltage and wattage match the required lift for your specific system pressure.
Can this solenoid valve be installed in any orientation?
For optimal performance and to prevent debris accumulation on the seat, the Sporlan 4186-00 should be mounted in a horizontal line with the coil housing in the upright vertical position.
Is the coil included with the Sporlan 1-3/8 ODF valve?
Standard 4186-00 configurations are typically sold as the valve body and internal kit; technicians must select the appropriate MKC-2 or OMKC-2 coil based on the required voltage (120V, 240V, or 24V) to complete the assembly.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
