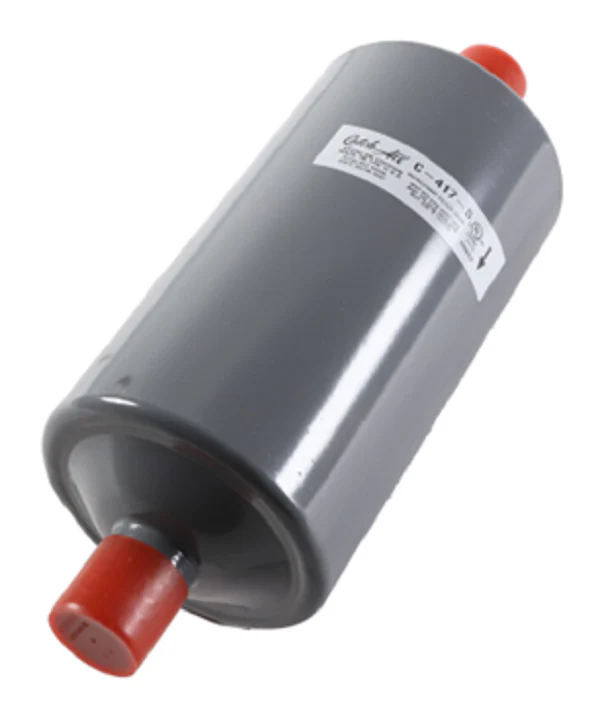

Sporlan 401614 C-417-S Filter Drier
The Sporlan 401614, identical to the C-417-S, is a high-capacity liquid line filter drier engineered for heavy-duty HVACR protection. As a core component of the Catch-All series, this unit features a 41 cubic inch molded porous core designed to provide high-efficiency moisture and acid removal. This specific model is equipped with 7/8" ODF solder connections, making it a standard choice for technicians servicing systems ranging from 5 to 15 tons depending on the refrigerant and application. The solid desiccant core effectively captures scale, solder particles, and sludge that can cause catastrophic TEV or compressor failure. Rated for a maximum working pressure of 650 psig, it is fully compatible with R-410A, R-134a, R-22, and modern HFO blends. For professional contractors, this drier is the industry benchmark for ensuring long-term system chemistry stability and refrigerant purity in commercial refrigeration and residential AC units.
Key Benefits for Contractors:
- Superior Contaminant Capture: The molded core architecture removes solid debris down to microscopic levels, protecting sensitive thermal expansion valves and internal compressor components.
- High Acid Capacity: Formulated desiccants specifically target and neutralize hydrochloric, hydrofluoric, and organic acids often found in aged or high-temperature systems.
- Versatile Refrigerant Support: Approved for use with HCFCs, HFCs, even HFO and HC refrigerants, including R-407C, R-404A, and high-pressure R-410A applications.
- Rugged Construction: Features a corrosion-resistant powder-coated shell and solid copper fittings to streamline brazing and prevent leaks in harsh environmental conditions.
- Optimized Flow: Designed for negligible pressure drop, maintaining system efficiency while ensuring 100% of the refrigerant passes through the filtration media.
Common Technical Questions:
What is the nominal tonnage rating for this drier?
The Sporlan C-417-S is generally rated for 10 to 12 tons in residential field replacement applications, though it can support up to 15 tons in specific OEM configurations or R-22 air conditioning circuits. Always verify system-specific flow rates against the manufacturer's pressure drop charts.
Can this be used on a suction line?
No, the 401614 is a liquid line filter drier. For burnout cleanup or suction line protection, a dedicated suction-side drier with a bypass relief or a core specifically designed for low-pressure drop should be utilized.
Is this model compatible with POE oils?
Yes, the Catch-All core is highly effective at removing the moisture and products of oil decomposition associated with polyester (POE) and mineral oils, making it essential for R-410A system maintenance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
