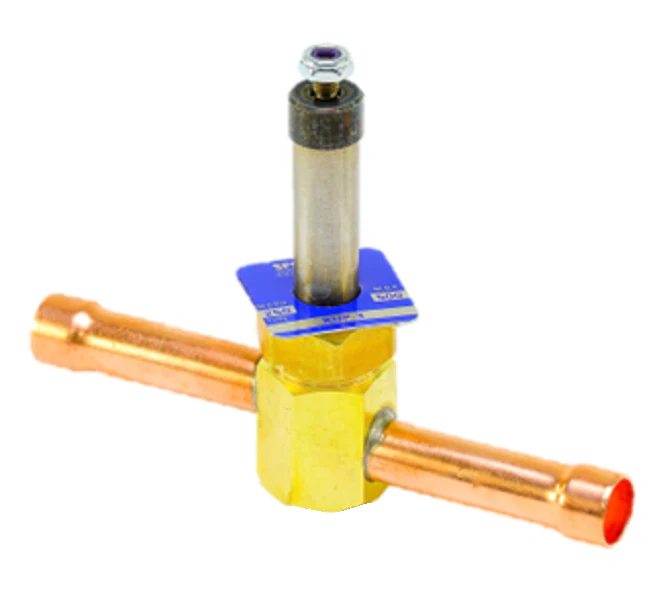

Sporlan 3861-00 Valve
The Sporlan 3861-00 is an industrial-grade rapid cycle solenoid valve specifically engineered for high-frequency operation in liquid or vapor refrigeration lines. Designed as an XUP-3-W/MH configuration, this valve body is supplied less coil, allowing for custom integration with low-force coils to keep impact forces minimal during actuation. Field technicians recognize this series for its ruggedized internal components, which mitigate the common failure points of standard valves—such as plunger mushrooming, top plug deformation, and enclosing tube fatigue caused by excessive cycling. With a Max Operating Pressure Differential (MOPD) of 250 PSI for AC applications and a total rated pressure of 500 PSI, it excels in maintaining tight temperature tolerances. This valve is the standard for environmental test chambers, precision cooling systems, and specialized OEM refrigeration equipment where component longevity during rapid modulation is non-negotiable for system stability.
Key Benefits for Contractors
- Enhanced Service Life: Advanced internal design dampens plunger impact, reducing mechanical wear during frequent on/off cycles.
- Extreme Pressure Resilience: Rated for a 500 PSI maximum pressure, providing a robust safety margin in modern refrigeration systems.
- Precise Capacity Control: Available in multiple port sizes including 0.075 and 0.115 to ensure accurate flow matching for precision cooling.
- Application Versatility: Optimized for use in both liquid and vapor stages, making it a versatile stock item for complex thermal management systems.
- Reduced Downtime: Specifically built to prevent top plug damage and tube cracking, frequent issues found in standard-duty solenoid valves.
Common Questions
Is this valve compatible with DC voltage coils?
While the body is rated for 250 PSI MOPD on AC voltage, the MOPD will vary when using DC. Always verify the specific coil-valve combination pressure ratings for DC applications to ensure proper opening under load.
Does the 3861-00 include the solenoid coil?
No, this is a less coil (LC) model. You must pair it with a compatible Sporlan MKC or similar low-force coil to complete the assembly for rapid cycle operation.
What media can the XUP-3-W/MH handle?
This valve is designed to handle common refrigeration media in both liquid and vapor phases, provided the MOPD and temperature limits of the system stay within the 500 PSI rated ceiling.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
