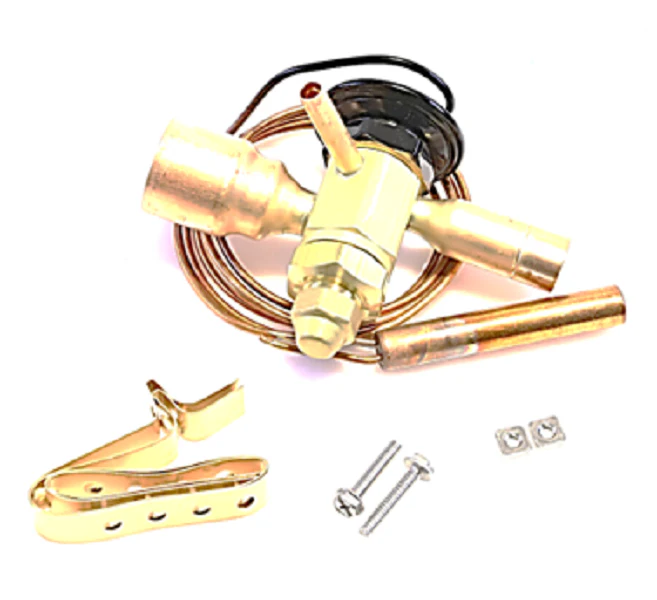

Sporlan 168804P TXV
The Sporlan 168804P is a high-performance Balanced Port Thermostatic Expansion Valve engineered for precise refrigerant metering in R-410A air conditioning and heat pump systems. Designed with 5/8" ODF Inlet and 1-1/8" ODF Outlet solder connections, this valve features a 5-foot capillary tube and an external equalizer for accurate superheat control across varying load conditions. The balanced port construction permits fluid flow in both directions, making it an ideal R-410A TXV replacement for high-efficiency evaporators where pressure drops fluctuate. By mitigating the effects of high head pressure and liquid temperature variations, the 168804P ensures consistent evaporator loading and prevents liquid slugging. Its robust power assembly and Sporlan thermal expansion valve internal components are optimized for long-term reliability in demanding residential and light commercial HVACR applications, providing technicians with a dependable solution for HVAC expansion valve troubleshooting and system retrofits.
Key Benefits for Field Installation- Balanced Port Design: Compensates for high pressure drops and varying liquid temperatures to maintain stable superheat.
- Optimized for R-410A: Factory-set for high-pressure synthetic refrigerants commonly found in modern AC evaporator coil components.
- Bi-Directional Capability: Simplifies piping on heat pump systems by allowing flow in both cooling and heating modes.
- Extended Durability: Features a stainless steel diaphragm and high-grade braze joints to eliminate potential leak points.
- Precise Sensing: The 5-foot capillary lead allows for flexible TXV bulb placement on the suction line for accurate temperature feedback.
What are the specific connection sizes for the Sporlan 168804P?
This model utilizes a 5/8" ODF inlet and a 1-1/8" ODF outlet. It is designed for sweat-style installation into standard copper liquid and suction lines.
Can this valve be used in both air conditioning and heat pump applications?
Yes, the balanced port architecture allows for bi-directional flow, making it suitable for heat pump systems that require refrigerant metering in various cycles.
How does this valve help with hunting or erratic superheat?
The balanced port design cancels out the force of high-pressure liquid acting on the valve pin, allowing the thermostatic charge to maintain tighter control over the orifice opening even during low ambient or high-head conditions.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
