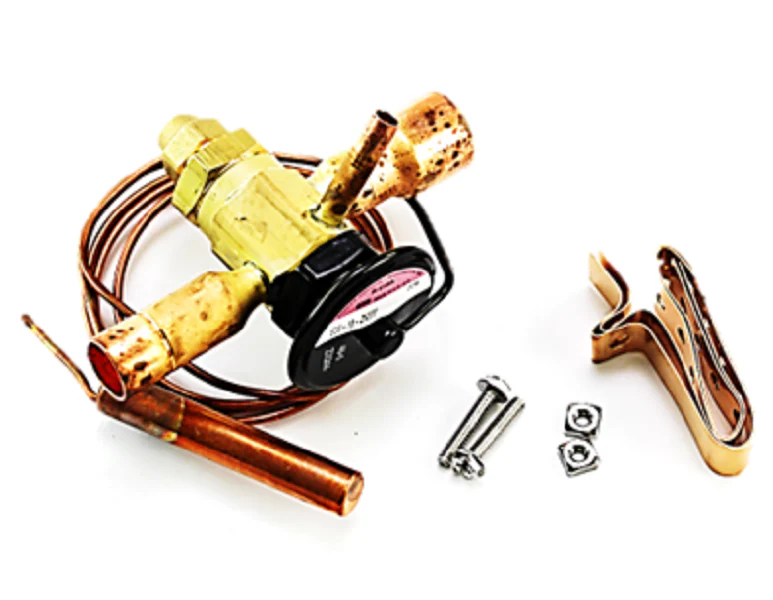

Sporlan 168803P TXV
The Sporlan 168803P, specifically the ECE-15-ZX200, is a high-capacity thermostatic expansion valve engineered for precise refrigerant metering in large-scale commercial refrigeration and air conditioning systems. This model features 5/8" x 7/8" ODF solder connections and utilizes a ZP charge, which is specifically designed for R-404A systems operating at low temperatures. The balanced port construction compensates for varying head pressures and heavy load fluctuations, ensuring stable superheat control across the entire evaporator surface. The external equalizer design mitigates pressure drop across the evaporator, preventing premature hunting and ensuring maximum coil efficiency. Built with a durable brass body and stainless steel internal components, this 15-ton TXV provides the reliability required for 24/7 industrial cooling applications. It is a drop-in replacement for failed expansion valves in systems requiring high-mass flow rates and tight superheat tolerances.
Key Benefits for Technicians:- Balanced Port Design: Maintains consistent superheat control even during significant changes in liquid temperature or pressure drop.
- Optimized ZP Charge: Prevents compressor motor overload during high-load pull-down scenarios by limiting maximum operating pressure.
- Internal Durability: High-grade stainless steel diaphragm and springs resist fatigue and corrosion in demanding environments.
- High-Capacity Throughput: Rated for 15 tons, making it ideal for large-scale walk-in freezers and chillers.
What refrigerant is the ECE-15-ZX200 compatible with?
This valve is specifically calibrated for R-404A and R-507 systems. Using it with significantly different refrigerants may result in improper superheat settings and potential system damage.
Can I install this valve in any orientation?
For optimal performance and to prevent oil trapping in the sensing bulb line, it is recommended to install the valve vertically with the powerhead upright, though it can function in other orientations if the bulb is positioned correctly on the suction line.
Does the ECE-15-ZX200 include a permanent internal strainer?
While constructed with high-quality components, it is best practice to install a catch-all filter drier upstream of this TXV to protect the precision orifice from debris.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $319.26
-65%$319.26
$111.74Sporlan 168803P TXV
The Sporlan 168803P, specifically the ECE-15-ZX200, is a high-capacity thermostatic expansion valve engineered for precise refrigerant metering in large-scale commercial refrigeration and air conditioning systems. This model features 5/8" x 7/8" ODF solder connections and utilizes a ZP charge, which is specifically designed for R-404A systems operating at low temperatures. The balanced port construction compensates for varying head pressures and heavy load fluctuations, ensuring stable superheat control across the entire evaporator surface. The external equalizer design mitigates pressure drop across the evaporator, preventing premature hunting and ensuring maximum coil efficiency. Built with a durable brass body and stainless steel internal components, this 15-ton TXV provides the reliability required for 24/7 industrial cooling applications. It is a drop-in replacement for failed expansion valves in systems requiring high-mass flow rates and tight superheat tolerances.
Key Benefits for Technicians:- Balanced Port Design: Maintains consistent superheat control even during significant changes in liquid temperature or pressure drop.
- Optimized ZP Charge: Prevents compressor motor overload during high-load pull-down scenarios by limiting maximum operating pressure.
- Internal Durability: High-grade stainless steel diaphragm and springs resist fatigue and corrosion in demanding environments.
- High-Capacity Throughput: Rated for 15 tons, making it ideal for large-scale walk-in freezers and chillers.
What refrigerant is the ECE-15-ZX200 compatible with?
This valve is specifically calibrated for R-404A and R-507 systems. Using it with significantly different refrigerants may result in improper superheat settings and potential system damage.
Can I install this valve in any orientation?
For optimal performance and to prevent oil trapping in the sensing bulb line, it is recommended to install the valve vertically with the powerhead upright, though it can function in other orientations if the bulb is positioned correctly on the suction line.
Does the ECE-15-ZX200 include a permanent internal strainer?
While constructed with high-quality components, it is best practice to install a catch-all filter drier upstream of this TXV to protect the precision orifice from debris.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
