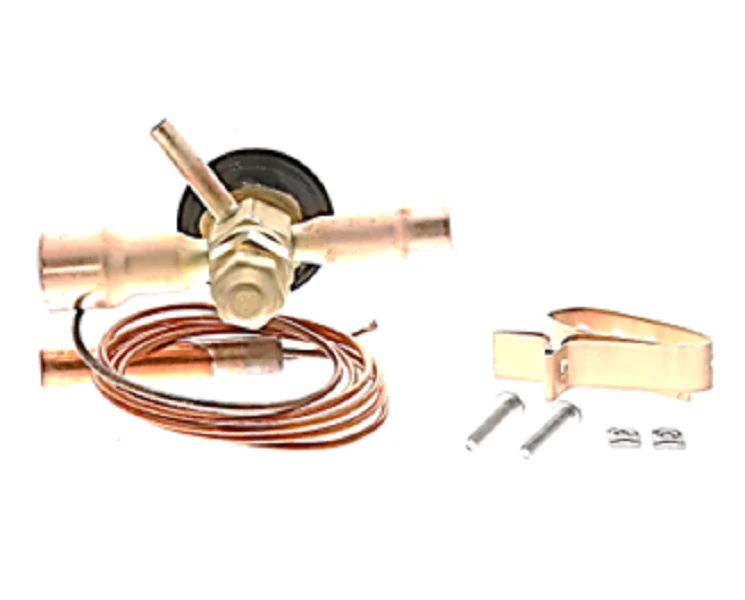

Sporlan 168736P TXV
The Sporlan 168736P is a heavy-duty, externally equalized ECE-D-ZX200 thermostatic expansion valve engineered for precision refrigerant flow control in high-capacity systems. This valve features a 5/8" x 7/8" ODF solder connection, utilizing extended copper fittings that simplify the brazing process and protect internal components from heat during installation. Designed with a balanced port configuration, the 168736P excels in maintaining stable superheat across a broad range of operating conditions, particularly in systems with varying head pressures or load fluctuations. This 8-ton TXV is optimized for R-410A refrigeration and air conditioning applications, utilizing a brass body and a removable power element for easier field service and maintenance. Whether you are replacing an existing unit or performing a new install, the 168736P is identical to 168736, ensuring seamless drop-in compatibility for technicians servicing commercial HVACR equipment.
Key Benefits:- Balanced Port Design: Delivers superior superheat control and prevents hunting in systems with surging loads or low ambient conditions.
- Extended ODF Connections: Eliminates the need for disassembly when brazing, saving time while ensuring a leakproof body joint.
- High-Pressure Capability: Rated for a maximum working pressure of 700 psi, specifically manufactured for the high-operating pressures of R-410A.
- Field Serviceable: Features a removable power assembly and stainless steel diaphragm for long-term durability and simplified component replacement.
Is the Sporlan 168736P compatible with R-22 systems?
No, this specific model (ZX200 charge) is designed for R-410A refrigerant. Using it with R-22 will result in incorrect superheat settings and potential compressor damage.
What is the difference between the 168736 and the 168736P suffix?
There is no functional or technical difference; the 168736P is identical to 168736 and carries the same specifications, capacity, and dimensions.
Can this valve be used in a heat pump application?
Yes, the ECE series is suitable for both high-temp air conditioning and heat pump systems, provided the capacity and refrigerant type match the system requirements.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
