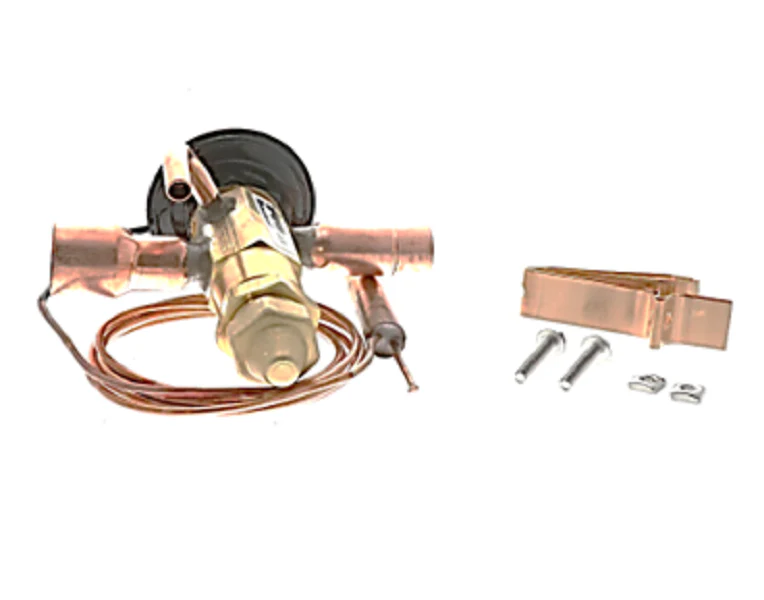

Sporlan 163507P Valve
The Sporlan 163507P, designated as model EBSSE-7 1/2-SW, is a high-capacity thermostatic expansion valve (TXV) engineered for professional HVACR applications. This valve features a brass bar body with 5/8" x 7/8" ODF solder connections, designed to provide precise refrigerant metering in systems requiring up to 7.5 tons of capacity. Utilizing a balanced port design, the EBSSE-7 1/2-SW ensures stable superheat control across varying head pressures and evaporator loads, making it an essential component for technicians servicing commercial refrigeration units, walk-in coolers, and industrial chillers. The externally equalized configuration allows for accurate pressure sensing at the evaporator outlet, compensating for pressure drops across the coil. Constructed with a replaceable thermostatic element and a durable stainless steel diaphragm, this valve is built for long-term field reliability and serviceability in high-demand environments. Its SW (Sweat) fittings facilitate a leak-proof, high-strength connection into the refrigeration circuit.
- Balanced Port Construction: Compensates for fluctuating head pressures to maintain consistent evaporator flow.
- High Capacity Reach: Rated for 7.5 tons, ideal for large-scale commercial refrigeration and air conditioning systems.
- Serviceable Design: Features a replaceable thermostatic element and accessible internal parts for simplified maintenance.
- Precision Metering: Optimized for superheat control, preventing liquid slugging and protecting the compressor.
- Robust Connections: 5/8" x 7/8" ODF solder ports provide a secure, vibration-resistant fit for copper piping.
Common Questions
Where should the external equalizer be installed for this valve?
The external equalizer line should be connected to the suction line immediately downstream of the sensing bulb to ensure the valve responds to the actual pressure at the evaporator outlet.
Is the Sporlan EBSSE-7 1/2-SW compatible with bi-directional flow?
While the EBSSE series is primarily designed for high-performance cooling, the balanced port mechanics allow for stable operation in various configurations; however, technicians should verify specific system flow requirements for heat pump applications.
Does this valve come pre-adjusted?
Yes, Sporlan TXVs are factory-set to a standard superheat; however, the valve is externally adjustable, allowing contractors to fine-tune the setting based on real-time system gauges and temperature readings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
