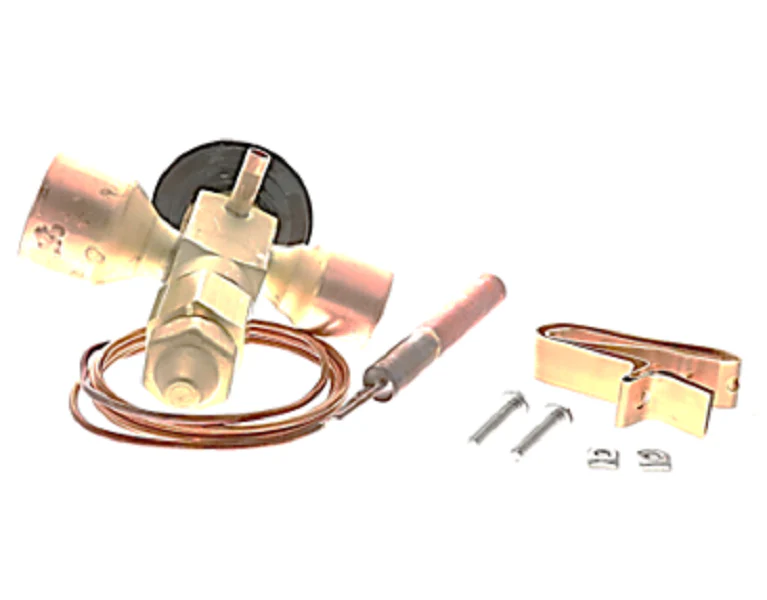

Sporlan 125698P Valve
For high-tonnage commercial applications, the Sporlan 125698P (Model OE-35-ZX180) is a heavy-duty thermostatic expansion valve engineered for precision refrigerant metering. Featuring a balanced port design, this TEV maintains consistent superheat control across a wide range of operating conditions, making it the industry standard for systems where load fluctuate significantly. The 1-1/8" x 1-3/8" ODF extended solder connections allow for streamlined installation without the need for valve disassembly, preserving internal component integrity during brazing.
Built with a durable brass bar stock body and a removable thermostatic power element, the OE-35-ZX180 is designed for long-term field serviceability in refrigeration and air conditioning sectors. This 35-ton nominal capacity valve utilizes an external equalizer to compensate for pressure drop across the evaporator, ensuring maximum coil efficiency. Whether you are servicing a rooftop chiller or a large-scale industrial evaporator, this Sporlan OE series valve provides the adjustable superheat capabilities required for fine-tuning system performance and protecting compressors from liquid slugging.
Key Benefits:- Balanced Port Construction: Neutralizes the effect of varying head pressures, ensuring stable control in low ambient or high load conditions.
- Large Capacity Performance: Delivering a 35-ton nominal rating for R-410A (and compatible with other refrigerants depending on the element charge).
- Serviceable Design: Features a replaceable power element and accessible internal parts for straightforward field maintenance.
- Extended ODF Connections: 1-1/8" inlet and 1-3/8" outlet copper fittings permit high-strength, leakproof joints using standard brazing alloys.
- Reliable Superheat Adjustment: Field-adjustable design allows technicians to optimize the evaporator refrigerant flow based on specific site requirements.
What is the primary application for the Sporlan OE-35-ZX180?
This valve is designed for medium to large-tonnage HVACR systems, specifically commercial air conditioning units and chillers where precise cooling load management is critical.
Does this valve require an external equalizer?
Yes, the OE-35-ZX180 utilizes a 1/4" ODF external equalizer to monitor pressure at the evaporator outlet, which is essential for accurate superheat measurement in high-capacity systems.
Can I install this valve without taking it apart?
Yes, the extended ODF solder connections are designed to be brazed into the line without disassembling the valve body, provided proper heat-sinking techniques are used to protect the internal seals.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
