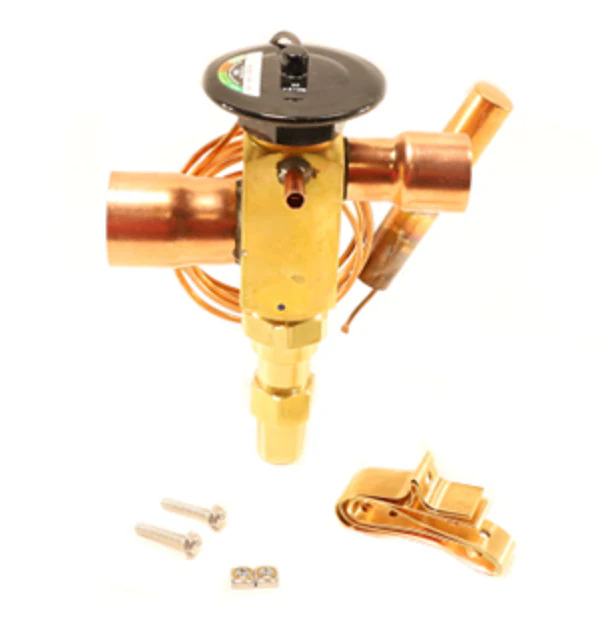

Sporlan 124317P Valve
The Sporlan 124317P, model OVE-40-VX100, is a high-capacity thermostatic expansion valve (TXV) engineered for large-scale commercial refrigeration and HVAC systems. Built with a balanced port design, this valve ensures precise refrigerant flow control by neutralizing the effects of pressure drop variations across the port, making it ideal for units with widely fluctuating operating conditions. This specific OVE series valve features 1 1/8" x 1 3/8" ODF solder connections and is designed to maintain consistent evaporator superheat, preventing liquid slugging while maximizing heat transfer efficiency in the coil.
For technicians servicing R-22 or compatible high-tonnage systems, the OVE-40-VX100 offers a rugged brass body construction and a stainless steel diaphragm for long-term reliability in the field. The externally equalized design is mandatory for these larger capacities to compensate for the pressure drop inherent in high-flow evaporators. Featuring a field-replaceable thermostatic element and an adjustable superheat stem, this Sporlan valve provides the granular control required for critical load matching and system tuning.
Key Benefits
- Balanced Port Construction: Eliminates the influence of varying liquid temperatures and pressure drops for stable refrigerant metering.
- High-Tonnage Performance: Optimized for large commercial HVACR applications requiring a 40-ton nominal capacity.
- Serviceable Design: Features a replaceable power element and accessible internal components for streamlined maintenance.
- Precise Superheat Control: Externally adjustable stem allows for exact tuning to meet specific suction line requirements.
- Durable Build: High-grade brass body with ODF connections for leak-proof, high-strength joints.
Common Questions
What refrigerant is the OVE-40-VX100 compatible with?
This model is specifically designated for R-22 systems, utilizing a VX100 thermostatic charge tailored for standard air conditioning and commercial refrigeration temperature ranges.
Why use an externally equalized valve like the 124317P?
External equalization is necessary on high-capacity systems to ensure the valve accurately senses the evaporator outlet pressure, preventing the valve from "hunting" or starving the coil due to internal pressure drops.
Is the power element on this Sporlan TXV replaceable?
Yes, the OVE series is designed with a replaceable thermostatic element, allowing for easy updates or repairs without removing the entire valve body from the refrigerant line.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
