Sporlan 102969 Valve

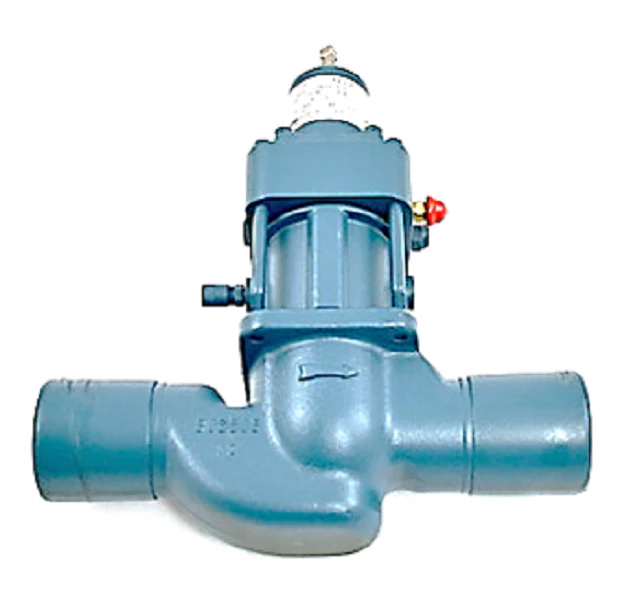

The Sporlan 102969 is a heavy-duty A82OE outlet pressure regulator designed for superior downstream control in commercial refrigeration and HVACR systems. Built with a rugged ductile iron body and 2-1/8" ODF brazed copper connections, this valve is engineered to handle high-capacity requirements while maintaining a constant outlet pressure regardless of load fluctuations. As a veteran-grade evaporator pressure regulator and crankcase controller, the A82OE features an externally equalized design, making it the industry standard for preventing compressor motor overload during high-load periods or hot gas bypass applications.
This pilot-operated Sporlan pressure regulating valve offers a wide adjustment range from 10" Hg to 400 psig, ensuring ultimate flexibility for HFC and HCFC refrigerants. The modular construction allows for sweat-in-place installation without disassembly, saving significant time on the job site. With its high-strength stainless steel diaphragms and interchangeable capacity cartridges, the 102969 provides a precise pressure set-point for critical refrigeration system pressure control, ensuring the mechanical integrity of the suction line and protecting the reciprocating or scroll compressor from excessive crankcase pressure.
Key Benefits for the Contractor:- Precise Pressure Regulation: Maintains stable downstream pressure to protect compressor motors and ensure consistent evaporator performance.
- Durable Construction: Ductile iron body and stainless steel diaphragms withstand high-pressure environments up to 450 psig (MRP).
- Installation Efficiency: Brazed copper couplings allow for direct soldering into the line; all service can be performed from the top without removing the valve body.
- Versatile Compatibility: Designed for use with all major HFC and HCFC refrigerants in commercial and industrial cooling circuits.
- Low Pressure Drop: Pilot-operated design ensures high flow capacity with minimal resistance, maximizing overall system efficiency.
What is the primary application for the A82OE model?
The "OE" designation signifies an externally equalized outlet pressure regulator. It is most commonly used as a crankcase pressure regulator (CPR) to limit the suction pressure entering the compressor, preventing motor stalls or overheating during startup or defrost cycles.
Does this valve require disassembly before brazing?
No. The A8 series is designed to be soldered into the line as-is. However, it is standard practice to wrap the valve body in a wet cloth to protect the internal seals and capacity cartridge from excessive heat transfer during the brazing process.
Can the capacity of this valve be adjusted in the field?
Yes. The modular design features interchangeable capacity cartridges, allowing for flow revisions if the system load requirements change, without requiring pipe line modifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
