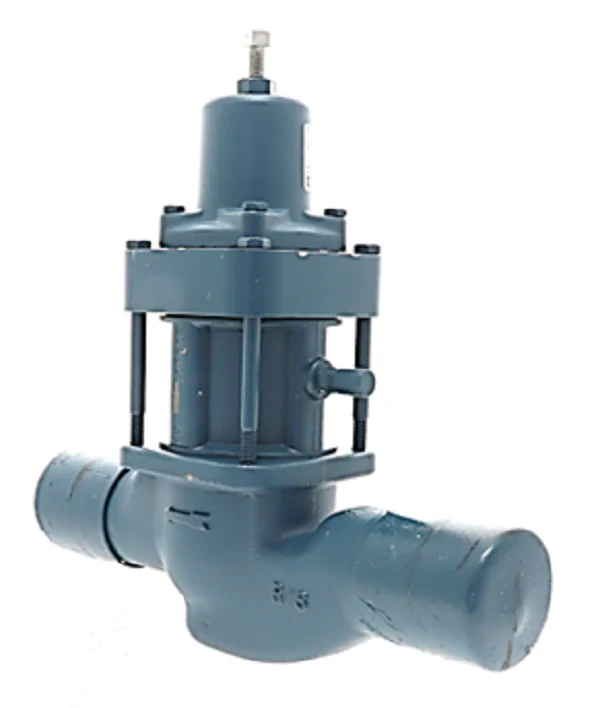

Sporlan 102923 Regulator
The Sporlan 102923 is a heavy-duty A82 series inlet pressure regulator engineered for precision refrigerant flow control in high-capacity commercial and industrial HVACR systems. Featuring a 2-1/8" ODF solder connection and a robust 1-5/8" port, this ductile iron-bodied valve is built to handle significant mass flow while maintaining consistent evaporator pressures. As a veteran-grade EPR, it utilizes a pilot-operated design to ensure tight modulation and a stable set-point, even during fluctuating load conditions or low-load cycles. The Sporlan 102923 Regulator is essential for multi-evaporator configurations where maintaining specific temperature racks on a common suction line is critical. Its sweat-in-place design allows for installation without disassembly, saving time on-site during large-scale retrofits or new builds. With a wide adjustment range from 10" Hg to 400 psig, this evaporator pressure regulating valve provides the reliability contractors require for preventing coil freeze-ups and ensuring optimal food safety in supermarket refrigeration.
Key Benefits:
- Durable Construction: Features a ductile iron body with brazed copper couplings for long-term structural integrity in demanding environments.
- Precise Modulation: Pilot-operated mechanism provides superior refrigerant flow control and maintains accurate pressure settings regardless of ambient changes.
- Serviceability: Designed with a manual opening stem and interchangeable capacity cartridges, allowing for top-down maintenance without removing the valve body.
- Energy Efficiency: Optimized for low pressure drop across the port, maximizing system COP and reducing compressor cycling.
- Versatile Compatibility: Suited for all major halogenated refrigerants in AC, commercial refrigeration, and liquid chilling applications.
Common Questions:
Does this regulator support manifold configurations?
Yes, the Sporlan 102923 is ideal for systems where multiple evaporators operate at varying temperatures while tied into a single suction group, preventing the lower-temperature evaporators from pulling down the pressure of the others.
What is the maximum design pressure for the A82 series?
The A8 series regulators are rated for a maximum design pressure of 450 psig, making them suitable for traditional and high-pressure refrigerant applications.
Can I adjust the set-point while the system is under vacuum?
The wide adjustment range of the Sporlan A82 102923 starts from 10" Hg, allowing for effective control even in sub-atmospheric conditions for specific low-temp applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
