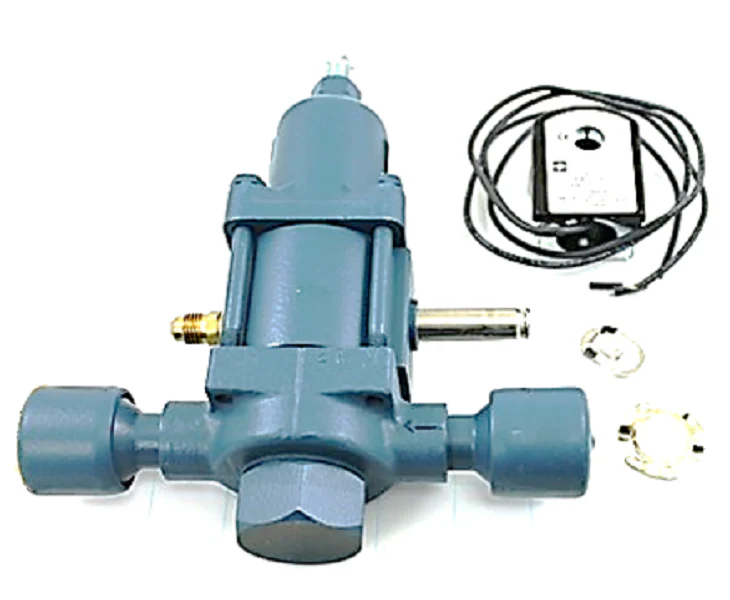

Sporlan 100941-202940 Valve
The Sporlan 100941-202940 is a high-performance A9SE hot gas bypass regulator engineered for precise outlet pressure regulation in commercial refrigeration and air conditioning systems. This pilot-operated valve features a 1 1/8" ODF solder connection and a 1 1/8" port, providing the high-capacity flow required to maintain system stability during low-load conditions. Equipped with a 120V solenoid coil, the A9SE allows for integral electric shut-off, making it an essential component for pump-down control and preventing compressor short-cycling.
Designed for field durability, the A9SE-1-1/8 is externally equalized, allowing it to sense and respond to suction pressure from a remote point, such as the compressor suction line. This ensures consistent evaporator pressure and proper oil return even as ambient temperatures fluctuate. The ductile iron body and copper couplings allow technicians to braze the valve in place without disassembly, significantly reducing installation time on the rack. With a design pressure of 450 psig and compatibility with major refrigerants like R-22, R-404A, and R-507, this Sporlan pressure regulator is a reliable choice for maintaining precise evaporator pressure control.
Key Benefits:- Precise Pressure Modulation: The pilot-operated design ensures a stable set point for superior hot gas bypass performance compared to direct-acting valves.
- Simplified Installation: Extended copper connections allow for direct brazing into the line without the need to tear down the internal components.
- Integral Electric Shut-off: The 120V pilot solenoid eliminates the need for an upstream liquid line solenoid in many pump-down applications.
- Enhanced Compressor Protection: Effectively prevents coil frosting and maintains minimum suction pressure to extend the life of compressor components.
- Can the A9SE be mounted in any orientation? For optimal performance, it is recommended to mount the valve in a horizontal or vertical line with the refrigerant flow following the arrow on the valve body.
- What is the adjustment range for this model? This is typically furnished with Range A (10" Hg to 120 psig), where one full turn of the adjustment stem equals approximately 16 psi.
- Is the coil included with this part number? Yes, this specific configuration includes the 120V MKC-2 type molded water-resistant coil.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
