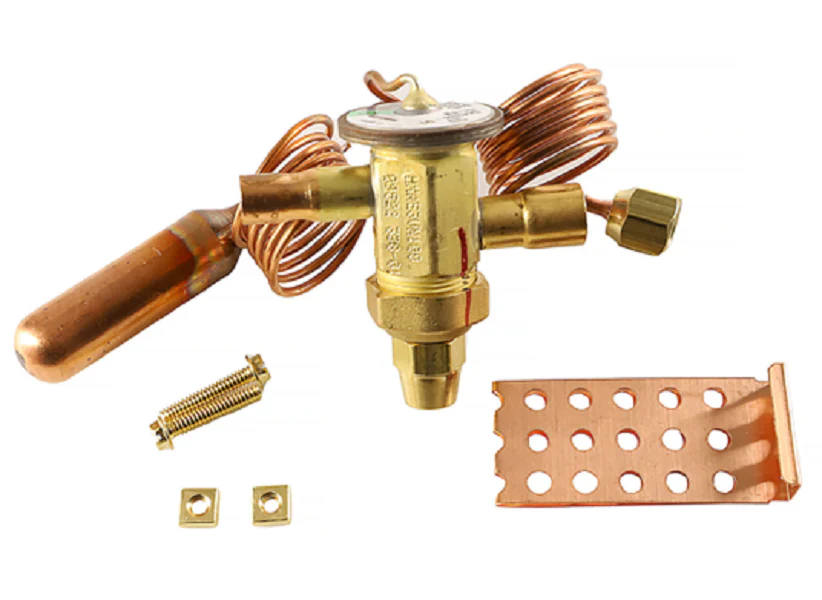

Sporlan 044338-01 TXV
The Sporlan 044338-01 HAE-3-VX100 is an industrial-grade thermostatic expansion valve (TXV) engineered for precision refrigerant metering in air conditioning and heat pump applications. Designed with a balanced port construction, this valve maintains stable superheat control across varying head pressures and load conditions, preventing liquid slugging and ensuring evaporator efficiency. This specific model features 3/8" x 1/2" ODF sweat connections for a leak-proof hermetic seal during field installation.
Utilizing a V charge (R-22) or R-407C compatibility, the HAE-3-VX100 TXV supports systems ranging from 1.5 to 3 tons in nominal capacity. The inclusion of a 1/4" SAE external equalizer allows the valve to compensate for pressure drops through the evaporator coil, making it a reliable solution for technicians servicing high-efficiency residential and light commercial units. Its stainless steel power element and durable brass body are built to withstand high-vibration environments commonly found in HVACR refrigeration systems.
Key Benefits
- Balanced Port Design: Delivers consistent superheat management even during significant ambient temperature swings or varying head pressures.
- Broad Capacity Range: Optimized for 1.5 to 3-ton refrigeration and AC systems, providing versatility for multiple equipment tonnages.
- Multi-Refrigerant Compatibility: Professionally rated for use with R-22 and R-407C refrigerants, ideal for both legacy maintenance and modern retrofits.
- ODF Sweat Connections: Features 3/8" inlet and 1/2" outlet copper connections to ensure a high-integrity, brazed interface.
- Field-Adjustable Superheat: Allows technicians to fine-tune system performance to exact manufacturer specifications on-site.
Common Questions
What is the nominal capacity of the Sporlan HAE-3-VX100?
This valve is rated for 1-1/2 to 3 tons of refrigeration capacity, specifically designed for air conditioning and heat pump applications.
Which refrigerants are compatible with the 044338-01 model?
The Sporlan 044338-01 is designed for R-22 and R-407C systems, utilizing a Type V thermostatic charge for precise modulation.
Is an external equalizer required for this TXV?
Yes, this model features a 1/4" SAE external equalizer connection to provide accurate pressure sensing at the evaporator outlet, compensating for internal pressure drops.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
