Siemens Industrial Controls Q230 Breaker

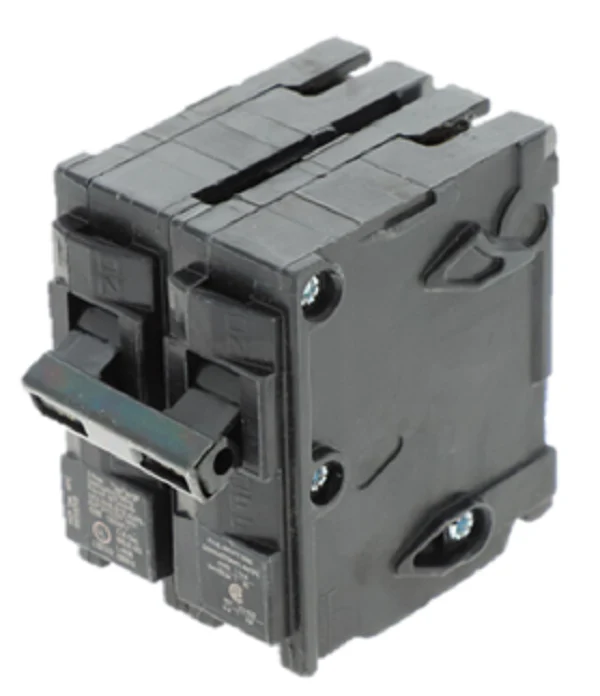

The Siemens Q230 is a heavy-duty, 2-pole Type QP circuit breaker engineered for high-demand residential and light commercial HVACR applications. Operating at 120/240V AC with a 30 Amp continuous current rating, this thermal-magnetic unit provides essential overcurrent protection for air conditioning condensers, heat pumps, and refrigeration compressors. Designed with a 10k AIC interrupting rating, it ensures reliable performance within Siemens EQ and Ultimate load centers. The 1-inch per pole frame size utilizes a standard plug-in connection with Insta-Wire terminal screws, facilitating rapid conductor seating for 14-6 AWG copper or 12-6 AWG aluminum leads. This common trip breaker is built to internal Siemens engineering standards (standard UL 489), ensuring the internal bridge trips both poles simultaneously during a fault to prevent single-phasing on 240V equipment.
Key Benefits- Dual-Pole Common Trip: Internal mechanism ensures both poles trip simultaneously if either phase faults, protecting 220V/240V motors from damage.
- Insta-Wire Technology: Features captive terminal screws and a design that speeds up the wiring process, reducing labor time during panel upgrades.
- High Compatibility: Fits natively into Siemens EQ, EQL, SEQ, and PL load centers, as well as older ITE and Gould panels.
- Versatile Termination: Rated for both copper and aluminum conductors, allowing for flexibility in existing field wiring environments.
Is the Siemens Q230 compatible with other panel brands?
While the Siemens Q230 is primarily designed for Siemens and ITE load centers, it is often technically compatible with specific Murray and Gould panels. However, always verify the panelboard listing to ensure the breaker is UL-approved for that specific enclosure.
Can I use this breaker for a 240V AC unit?
Yes, as a 2-pole 30A 120/240V breaker, it is the industry standard for 30-amp residential 240V circuits, commonly used for larger HVAC blowers, condensers, and electric water heaters.
What wire size is required for this 30 Amp breaker?
For a 30A circuit, 10 AWG copper wire is typically required. The Siemens Q230 lugs are rated to accept a range from 14 AWG to 6 AWG to accommodate various field conditions.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
