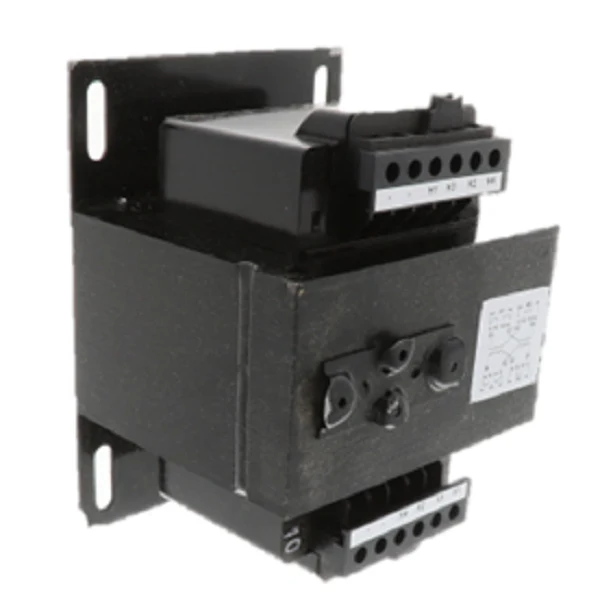

Siemens Industrial Controls MT0750M Transformer
The Siemens Industrial Controls MT0750M Transformer is a heavy-duty 750VA control power transformer designed for demanding industrial automation and HVACR control circuits. As a Class MT control transformer, this unit features a dual-primary configuration supporting 240V/480V primary voltage and a dual-secondary output of 120V/240V secondary voltage, providing essential step-down capabilities for electromagnetic devices like contactors, solenoids, and relays. Built with high-grade silicon steel laminations and vacuum-impregnated epoxy resin insulation (Class 130°C), it ensures cooler operating temperatures and superior dielectric strength in high-ambient environments. The silicon steel core minimizes core losses while improving regulation, which is critical for maintaining stable control voltage during high inrush currents typical of motor starter engagement. Integrated finger-safe terminals and factory-mounted fuse clips simplify installation within NEMA enclosures and ensure code compliance. For technicians retrofitting existing panels, the slotted mounting plate and compact footprint make this 750VA industrial transformer a reliable drop-in replacement for standard domestic and industrial control applications.
Key Benefits:- Dual-Voltage Versatility: Supports 240x480V primary and 120x240V secondary wiring for multi-site application flexibility.
- Enhanced Safety: Features IP20 finger-safe terminals to prevent accidental contact and improve overall panel safety.
- Durable Construction: Fully encapsulated coils protected against moisture, dust, and industrial contaminants.
- Efficient Footprint: Factory-mounted fuse clips save critical rail space and reduce additional wiring time.
- Superior Regulation: High-quality copper windings and core design handle high-inrush loads without significant voltage drop.
Is the Siemens MT0750M compatible with both 50Hz and 60Hz systems?
Yes, this 750VA control transformer is rated for 50/60 Hz frequency operation, making it suitable for both domestic and international machinery requirements.
What type of fusing is required for the MT0750M?
This model includes factory-mounted secondary fuse clips. For primary protection, technicians should select fuses based on UL/CSA industrial control transformer standards and the specific branch circuit requirements.
How do I configure the primary for 480V vs 240V?
The unit is supplied with jumpers. For 480V primary voltage, wire the primary coils in series; for 240V, wire them in parallel as per the provided wiring diagram on the nameplate.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
