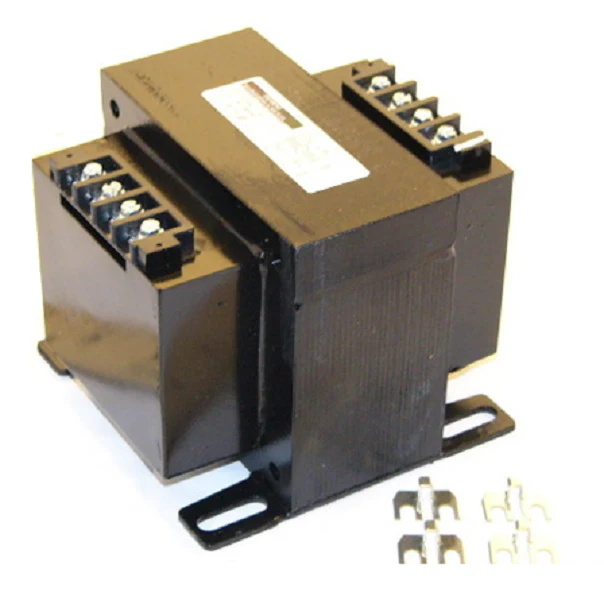

Siemens Industrial Controls MT0500M Transformer
Professional-grade Siemens MT0500M control power transformers are engineered for high-demand industrial environments where reliability is non-negotiable. This industrial control transformer features a robust 500VA power rating and a versatile 240/480V to 120/240V voltage conversion, making it a critical component for stepping down primary supply voltages to safely power control circuits, solenoids, and contactors. Designed as a Class MT unit, it utilizes high-quality silicon steel laminations to minimize core losses and maximize electrical efficiency across 50/60 Hz frequencies.
The Siemens MT0500M is built for longevity with epoxy-encapsulated coils that protect against moisture, dust, and industrial contaminants. For field technicians, the inclusion of screw-type terminals and integrally molded barriers ensures secure, low-loss connections while preventing electrical creepage. This step-down transformer is a standard choice for panel builders and HVACR contractors requiring a heavy-duty solution for motor control centers and machine tool applications.
Key Benefits- Enhanced Durability: Epoxy encapsulation seals the transformer against hostile environments, preventing damage from dirt and humidity.
- Superior Conductivity: Features #10-32 terminal screws with a full quarter-inch of thread to prevent stripping and ensure high-torque wiring stability.
- Efficient Performance: Silicon steel construction reduces heat density and parasitic power loss for cooler operation in enclosed panels.
- Flexible Wiring: Comes with standard jumper links to facilitate easy configuration between dual primary and secondary voltage settings.
- Industry Compliance: UL Listed and CSA Certified to meet rigorous safety standards for North American industrial installations.
What is the maximum current output for this 500VA unit?
At a 240VAC secondary output, the Siemens MT0500M provides approximately 2.08 amps. At 120VAC, the maximum current is 4.16 amps, supporting various control load requirements.
Can this transformer be used for both 50Hz and 60Hz applications?
Yes, this industrial transformer is rated for 50/60 Hz, making it suitable for domestic equipment and international machinery exports.
Does it support secondary fusing for circuit protection?
This model is designed to accommodate factory-mounted fuse clips for secondary side fusing, saving valuable space in compact control panels.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
