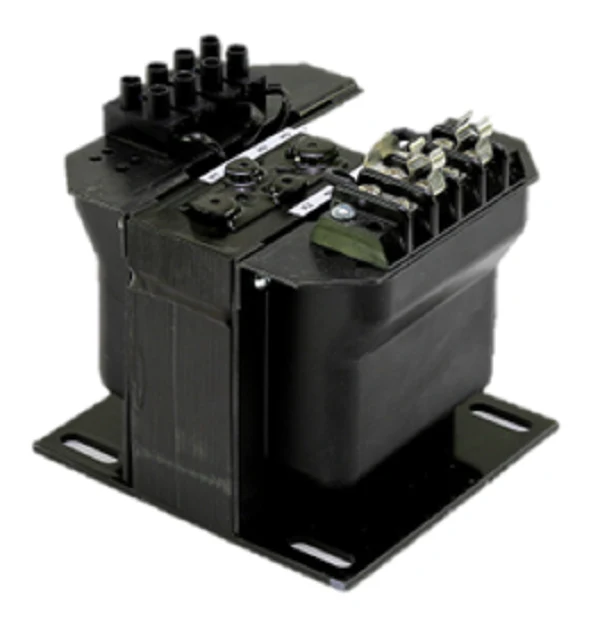

Siemens Industrial Controls MT0500F Transformer
The Siemens Siemens MT0500F is a professional-grade 500VA industrial control transformer specifically engineered for high-demand HVACR and automated control systems. Built for heavy-duty applications, this step-down transformer manages a primary dual-voltage input of 208/277V and provides a stable 120V secondary output. Its Class MT design incorporates silicon steel laminations to minimize eddy currents and ensure high magnetic permeability. Designed with an open core and coil, it utilizes epoxy-encapsulated coils to resist moisture, dust, and common industrial contaminants found in mechanical rooms. This unit handles the high inrush currents typical of contactors and motor starters, maintaining critical voltage regulation during startup to prevent relay chatter or system failure.
Key Benefits:- Universal Application: Dual-voltage primary (208/277 VAC) provides flexibility for commercial and industrial supply lines.
- Superior Thermal Management: Features Class 130°C insulation to operate under sustained loads without overheating.
- Enhanced Connectivity: Equipped with integrally finger-safe screw terminals and extra-deep barriers to prevent electrical creepage and shorts.
- Integrated Protection: Factory-mounted fuse clips on the secondary side save panel space and streamline the circuit protection process.
- Low-Loss Performance: High-silicon steel cores ensure maximum efficiency with a low 20% power factor rating for high-performance control logic.
Is the Siemens MT0500F compatible with 240V systems?
This specific model is optimized for 208V and 277V primary inputs. For 240V industrial applications, verify the winding configuration; utilizing the 208V tap on a 240V line may result in secondary overvoltage outside of NEMA tolerances.
Can I use this transformer for high-inrush motor starter coils?
Yes. The 500VA capacity is specifically rated to handle the peak inrush VA requirements of size 0-2 motor contactors and multiple pilot devices without causing a significant voltage drop that could drop out the circuit.
What mounting orientation is required?
The unit is designed for surface mounting via a heavy-gauge steel baseplate. It can be installed in panels or enclosures where airflow is sufficient to dissipate the heat generated by the 55°C temperature rise over ambient.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $248.76
-65%$248.76
$87.07Siemens Industrial Controls MT0500F Transformer
