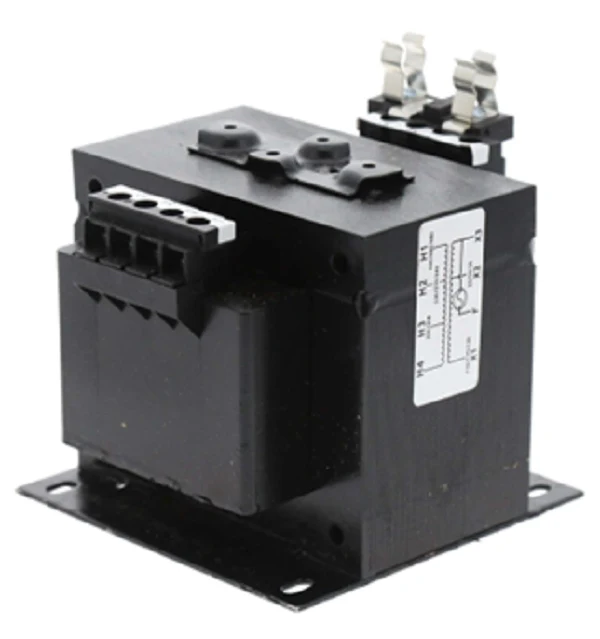

Siemens Industrial Controls MT0250J Transformer
As a seasoned technician, you know that control circuit reliability starts with a robust industrial control transformer. The Siemens MT0250J is a 250VA control transformer engineered specifically for high inrush current applications typical of motor starters and contactors. This Class MT transformer features multi-tap primary configurations, allowing for seamless integration into 208/230/460V industrial power systems. The secondary provides both 115V and 24V outputs, delivering the versatile control voltage needed for modern HVACR diagnostics and automation. Its epoxy encapsulated coils provide superior protection in harsh mechanical rooms, sealing out moisture, dust, and contaminants that degrade traditional open-core units. With factory-mounted fuse clips for secondary protection and integrally molded terminal barriers, the Siemens MT0250J minimizes installation labor while maximizing electrical creepage protection. When you are spec’ing multi-tap control power transformers for a 208V to 24V step down or a 460V to 115V conversion, this unit offers the voltage regulation required to maintain 85% of rated secondary voltage during critical startup cycles.
Key Benefits- Versatile Primary Taps: Supports 208, 230, and 460 VAC inputs, making it a universal truck-stock item for industrial service.
- Dual Secondary Outputs: Provides specific 115V and 24V taps to accommodate various control logic and thermostat requirements.
- Enhanced Durability: Epoxy encapsulation protects against industrial contaminants and moisture in hostile environments.
- Space-Saving Protection: Includes factory-mounted secondary fuse clips, reducing the need for external fuse blocks in the panel.
- Technician-Friendly Design: Features deep molded barriers between screw-type terminals to prevent shorts from frayed leads or tool slippage.
What is the maximum VA rating for this unit?
The Siemens MT0250J is rated for an operating apparent output of 250VA, designed to handle the high inrush demands of industrial solenoids and motor starters.
Can this transformer be used on 50Hz systems?
Yes, this industrial control transformer is rated for both 50Hz and 60Hz frequencies, making it compatible with domestic and international equipment profiles.
Does it come with mounting hardware?
The unit features heavy-gauge steel slotted mounting brackets for surface installation in variety of orientations within a control cabinet.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
