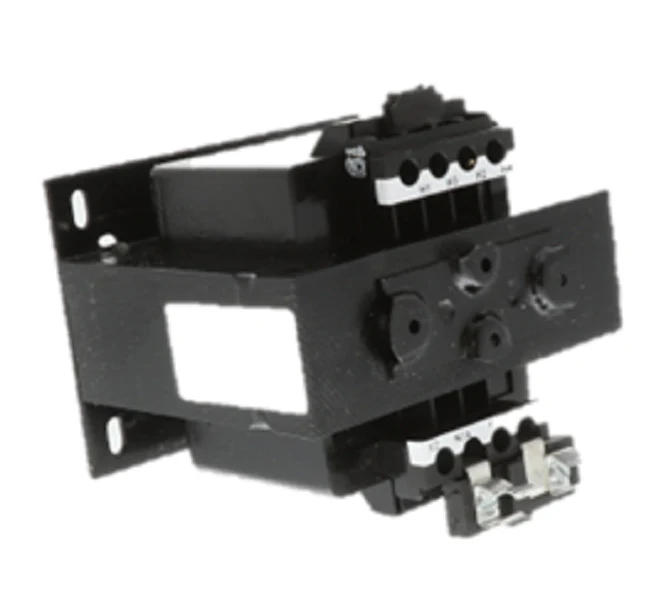

Siemens Industrial Controls MT0200B Transformer
The Siemens MT0200B is a high-performance industrial control transformer engineered to provide stable 24V secondary voltage from 240V or 480V primary electrical sources. Built with a silicon steel-laminated core and high-grade copper magnet wire, this 200VA transformer minimizes core losses while maximizing efficiency in demanding motor control circuits. The MT0200B features an encapsulated design that protects internal windings against moisture, dust, and industrial contaminants, ensuring long-term dielectric strength in harsh environments.
Contractors will appreciate the screw-type terminals with integrally molded barriers, which significantly reduce the risk of electrical creepage and terminal breakage during high-torque field wiring. This single-phase transformer is rated for 50/60 Hz operation and includes factory-mounted secondary fuse clips, saving critical panel space and reducing installation time for safety-critical HVACR control systems. With an insulation class of 130°C and a low 55°C temperature rise, it maintains consistent performance under continuous load in typical industrial control panels.
Key Benefits
- High-efficiency 200VA power rating compatible with various 24V AC industrial and commercial controllers.
- Rugged epoxy-encapsulated construction resides in an M-Series housing for superior thermal management and environmental protection.
- Integrated secondary fuse clip simplifies circuit protection and meets UL/CSA requirements without additional fossil blocks.
- Versatile foot mounting pattern (0.406" x 0.203" slots) allows for easy standard industrial panel integration.
- Primary voltage flexibility supports 240x480V dual-voltage inputs, making it a versatile stock item for multiple site configurations.
Common Questions
How do I wire the MT0200B for 480V input?
For 480V operation, the primary windings are typically wired in series. Ensure all screw terminals are tightened to specification to maintain continuity and prevent arcing in industrial environments.
What is the maximum current output for this 200VA transformer at 24V?
The Siemens MT0200B provides a continuous current output of approximately 8.33 Amps at its 24V secondary, suitable for powering multiple relays, contactors, and control components.
Does this unit require a separate fuse block for the secondary side?
No, this model includes factory-mounted secondary fuse clips, allowing you to install a standard 13/32" x 1-1/2" fuse directly onto the unit to protect your control circuit.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
