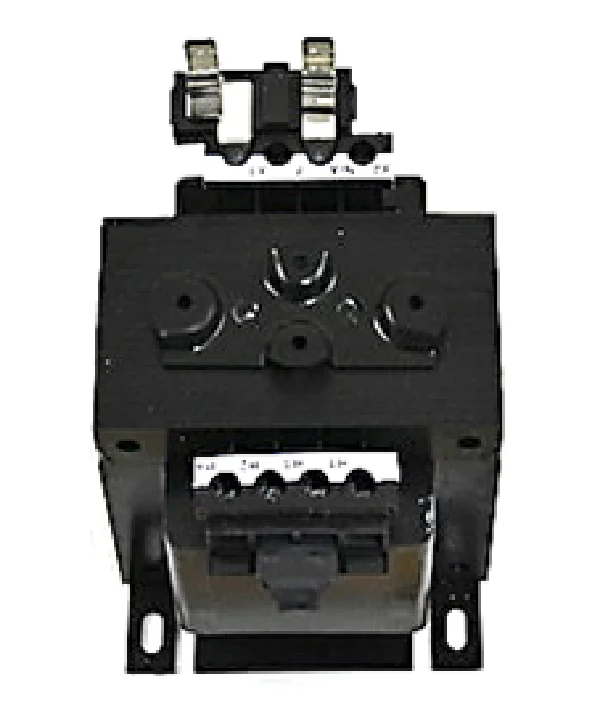

Siemens Industrial Controls MT0150B Transformer
The Siemens Industrial Controls MT0150B Transformer is a heavy-duty 150VA control power transformer engineered for stable voltage regulation in industrial automation and HVACR control panels. Designed to handle high inrush currents typical of electromagnetic components, this dual primary transformer supports 240/480V primary inputs and delivers a consistent 24V secondary output. The silicon steel lamination core is precision-welded to minimize eddy current losses, while the epoxy-encapsulated coils provide a barrier against moisture, dust, and industrial contaminants, ensuring long-term dielectric integrity.
Installers benefit from the integrally molded barriers between terminals which prevent electrical creepage and accidental shorts during wiring. The unit features factory-mounted fuse clips on the secondary side, eliminating the need for add-on fuse blocks and saving valuable DIN rail or sub-panel space. With a Class 130°C insulation system and a 55°C temperature rise, this Step-down industrial transformer maintains high efficiency under continuous load, making it a reliable choice for powering 24V contactors, relays, and PLCs in rugged environments.
Key Benefits- Enhanced Durability: Epoxy-encapsulated design protects internal windings from harsh industrial atmospheres and vibration.
- Simplified Wiring: Features screw-type terminals with deeper barriers and 30% greater contact area for low-loss mechanical connections.
- Space Optimization: Integrated secondary fuse clips reduce component footprint and streamline panel assembly.
- High Inrush Capability: Optimized for solenoids and starters, maintaining secondary voltage stability during peak demand cycles.
- Can this transformer be mounted in any orientation? Yes, the slotted mounting feet allow for flexible installation on sub-panels, though standard vertical or horizontal alignment is recommended for heat dissipation.
- What is the purpose of the included jumpers? The jumpers allow the technician to easily configure the unit for either 240V or 480V primary input voltage without external wiring complicatedness.
- Is the secondary side protected? This model includes a factory-installed fuse clip to accommodate secondary circuit protection, which is essential for meeting NEC requirements in control circuits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
