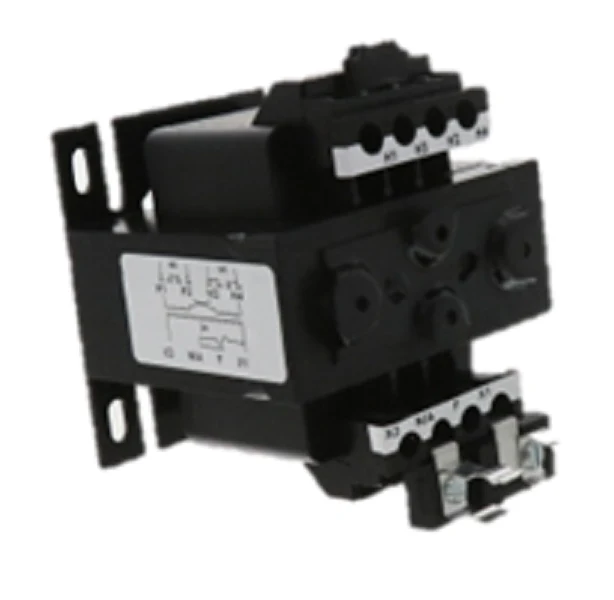

Siemens Industrial Controls MT0100B Transformer
The Siemens Industrial Controls MT0100B Transformer is a high-performance 100VA control power transformer engineered for precision industrial applications. Designed for versatile field integration, this unit features a 240/480V primary input and a 24V secondary output, making it the standard choice for stepping down high-voltage supply to safe, reliable 24VAC control power for contactors, relays, and PLCs. Built to withstand demanding HVACR environments, the MT0100B utilizes silicon steel laminations to minimize core losses and maximize electrical efficiency across its 50/60 Hz frequency range.
This Siemens Class MT transformer is constructed with epoxy resin varnish and Class 130°C insulation to protect against moisture, dust, and industrial contaminants. Installation is streamlined via screw-type terminals and a flexible surface or foot mounting footprint. For enhanced safety and protection, the unit includes integrally molded barriers to prevent secondary electrical creepage and comes equipped with factory-mounted secondary fuse clips, saving valuable panel space and reducing total installation time for busy HVACR technicians.
- Universal Input: Supports 240V and 480V primary configurations for dual-voltage compatibility in commercial and industrial control panels.
- Rugged Insulation: Features a Class 130°C insulation system with epoxy encapsulation to ensure long-term stability in high-ambient temperature environments.
- Touch-Safe Design: Equipped with integrally finger-safe terminals and deep barriers to reduce the risk of electrical shorts from frayed leads.
- Integrated Fusing: Includes factory-mounted fuse clips for secondary circuit protection, eliminating the need for external fuse blocks.
- Compact Footprint: Designed for easy integration into high-density control enclosures with 50/60 Hz capability for global application support.
What is the maximum temperature rise for this unit?
The MT0100B is rated for a 55°C temperature rise above an ambient operating range of -20°C to +40°C, ensuring reliable operation within hot control cabinets.
Can this transformer be used for 120V secondary applications?
No, this specific model (MT0100B) is designed strictly for a 24VAC secondary output. For 120V secondary needs, you would require an "A" suffix model, such as the MT0100A.
Are jumpers included for the dual primary voltage settings?
Yes, this unit typically includes two jumper links as standard to facilitate wiring for either 240V or 480V primary voltage sources.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $109.80
-65%$109.80
$38.43Siemens Industrial Controls MT0100B Transformer
The Siemens Industrial Controls MT0100B Transformer is a high-performance 100VA control power transformer engineered for precision industrial applications. Designed for versatile field integration, this unit features a 240/480V primary input and a 24V secondary output, making it the standard choice for stepping down high-voltage supply to safe, reliable 24VAC control power for contactors, relays, and PLCs. Built to withstand demanding HVACR environments, the MT0100B utilizes silicon steel laminations to minimize core losses and maximize electrical efficiency across its 50/60 Hz frequency range.
This Siemens Class MT transformer is constructed with epoxy resin varnish and Class 130°C insulation to protect against moisture, dust, and industrial contaminants. Installation is streamlined via screw-type terminals and a flexible surface or foot mounting footprint. For enhanced safety and protection, the unit includes integrally molded barriers to prevent secondary electrical creepage and comes equipped with factory-mounted secondary fuse clips, saving valuable panel space and reducing total installation time for busy HVACR technicians.
- Universal Input: Supports 240V and 480V primary configurations for dual-voltage compatibility in commercial and industrial control panels.
- Rugged Insulation: Features a Class 130°C insulation system with epoxy encapsulation to ensure long-term stability in high-ambient temperature environments.
- Touch-Safe Design: Equipped with integrally finger-safe terminals and deep barriers to reduce the risk of electrical shorts from frayed leads.
- Integrated Fusing: Includes factory-mounted fuse clips for secondary circuit protection, eliminating the need for external fuse blocks.
- Compact Footprint: Designed for easy integration into high-density control enclosures with 50/60 Hz capability for global application support.
What is the maximum temperature rise for this unit?
The MT0100B is rated for a 55°C temperature rise above an ambient operating range of -20°C to +40°C, ensuring reliable operation within hot control cabinets.
Can this transformer be used for 120V secondary applications?
No, this specific model (MT0100B) is designed strictly for a 24VAC secondary output. For 120V secondary needs, you would require an "A" suffix model, such as the MT0100A.
Are jumpers included for the dual primary voltage settings?
Yes, this unit typically includes two jumper links as standard to facilitate wiring for either 240V or 480V primary voltage sources.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
