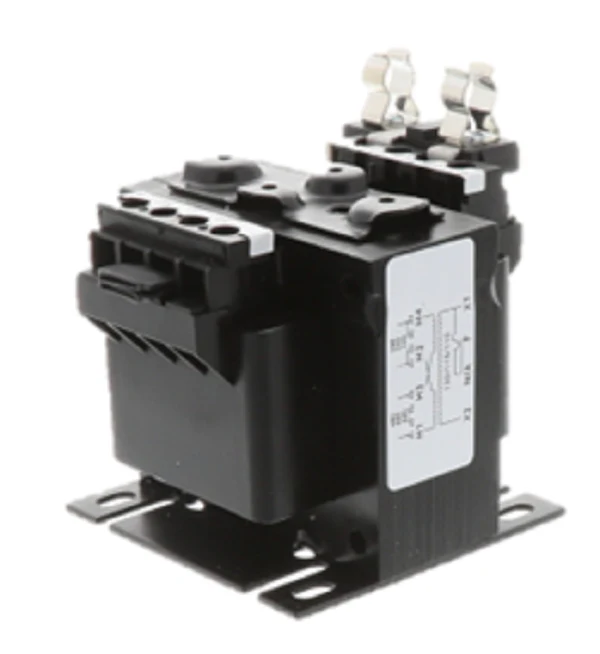

Siemens Industrial Controls MT0100A Transformer
The Siemens MT0100A Transformer is a heavy-duty industrial control power transformer engineered specifically for technical professionals managing motor control circuits and HVACR automation. As a foundational component in the Siemens Class MT lineup, this 100VA control transformer excels at stepping down high-voltage supply to stable terminal power for contactors, relays, and timers. With a 240/480V primary input and a 120V secondary output, this single-phase transformer utilizes a silicon steel-laminated core and high-grade copper magnet wire to maximize efficiency and maintain secondary voltage stability during the high-inrush cycles typical of electromagnetic devices. The MT0100A features an epoxy-encapsulated coil design that completely seals the windings against moisture, dust, and common industrial contaminants, ensuring reliable performance in demanding mechanical rooms and rooftops. Screw-type terminals provide touch-safe, high-torque industrial connections, and the integrated secondary fuse clips streamline panel space by eliminating the need for external fuse blocks.
Key Benefits- Stable Control Voltage: Specifically designed to handle the high inrush currents of industrial motor starters without significant voltage drop.
- Rugged Encapsulation: Complete epoxy sealing protects internal windings from humidity and debris, preventing premature insulation failure.
- Streamlined Installation: Factory-mounted secondary fuse clips and pre-formed terminal barriers reduce labor time and overall footprint.
- Universal Compatibility: Multi-tap primary supports 240V, 480V, 230V, 460V, 220V, and 440V configurations for versatile site deployment.
What is the maximum output current for this unit?
At a 120V secondary rating, this 100VA transformer is rated for approximately 0.83 Amps of continuous secondary current.
Does this unit come with fusing hardware?
Yes, the MT0100A includes a primary fuse kit (KCCFPX2R) and integrated secondary fuse clips to comply with standard industrial circuit protection requirements.
Can I mount this transformer in any orientation?
The open-core design is rated for surface mounting on panels and can typically be installed in various orientations as long as proper airflow is maintained for thermal dissipation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
