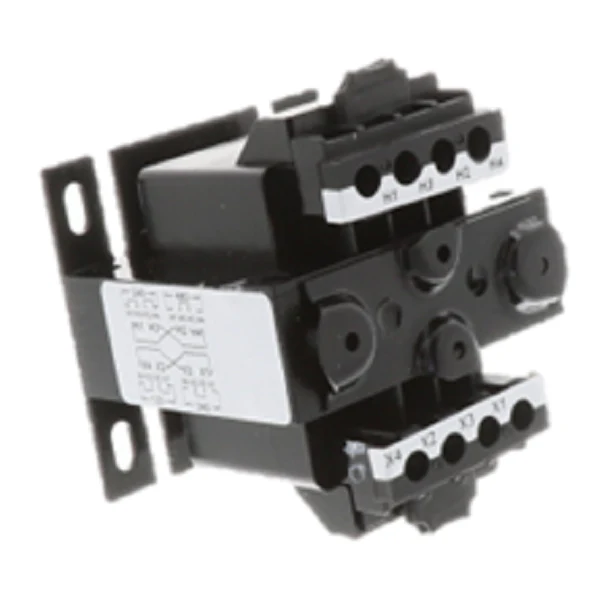

Siemens Industrial Controls MT0050M Transformer
The Siemens MT0050M Control Power Transformer is a heavy-duty 50VA industrial transformer designed to provide stable control voltage for electromagnetic devices like contactors, relays, and starters. Engineered for high-demand industrial environments, this unit features a dual primary 240/480V input and a dual secondary 120/240V output, making it highly versatile for various motor control center (MCC) configurations. The Class MT design includes silicone steel laminations to minimize core losses and epoxy encapsulation to seal the copper windings against moisture, dust, and non-corrosive contaminants. For streamlined panel assembly, this Siemens motor control transformer includes factory-mounted fuse clips on the secondary side, reducing footprint and wiring complexity. The robust construction features M-series technology with extra-deep terminal barriers to prevent electrical creepage and accidental shorts during field installation. Rated for 50/60 Hz operation, this 1-phase chassis mount transformer is a drop-in solution for contractors requiring reliable 240V to 120V step-down performance in compact enclosures.
Key Benefits:
- Enhanced Durability: Epoxy-encapsulated coils protect internal components from harsh shop floor conditions and contaminants.
- Efficient Thermal Management: High-quality silicon steel construction ensures low-loss operation and reliable performance at a 55°C rise.
- Integrated Fusing: Secondary fuse clips come factory-installed to save critical rail space and simplify circuit protection.
- Secure Terminals: Molded-in barriers and #10-32 terminal screws prevent stripping and pullout during high-torque wiring.
- Flexible Mounting: Slotted heavy-gauge steel mounting brackets allow for stable installation in multiple orientations.
Common Questions:
Can the MT0050M be used on both 50Hz and 60Hz systems?
Yes, this Siemens control power transformer is frequency-rated for both 50Hz and 60Hz applications, making it suitable for global equipment exports.
Weight and Dimensions for Panel Clearance?
This 50VA unit weighs approximately 3.1 lbs with a compact profile of 2.79" (H) x 3.00" (W) x 3.41" (D), designed to fit into tight control cabinets.
How do I configure the primary for 480V operation?
The dual-winding primary requires utilizing the included jumper links to wire the coils in series for 480V or in parallel for 240V input sourcing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
