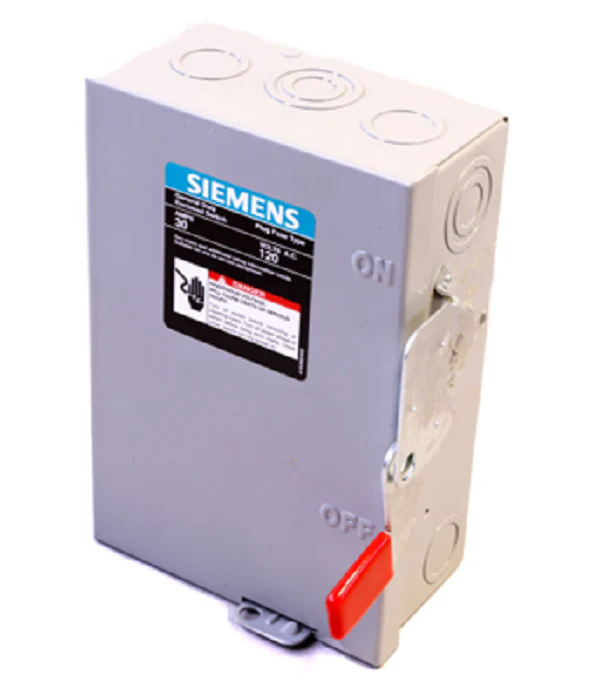

Siemens Industrial Controls LF111N Switch
The Siemens LF111N is a rugged, 30A 1P 120V plug fused switch designed for reliable circuit protection in NEMA 1 indoor environments. As a veteran-grade general duty safety switch, this unit features a single-pole, two-wire configuration that is ideal for managing low-voltage HVACR and light industrial loads. The visible blade switching construction provides technicians with a clear, physical confirmation of the circuit status, while the quick-make, quick-break mechanism minimizes arcing to extend the operational life of internal components. Rated for 1/2 HP at 120 VAC for standard loads and up to 2 HP when utilizing time-delay fuses, the LF111N offers the flexibility required for fractional horsepower motor applications. The assembly includes a solid neutral and is housed in a durable galvanized steel enclosure with 2/3-point mounting holes for stable surface installation. Contractors can rely on this Siemens fusible safety switch for high-performance circuit protection in commercial and residential settings where standard 120V plug fuses are the preferred overcurrent protection method.
Key Benefits- Double Break Visible Blades: Ensures a clear, positive visual verification of detached power for enhanced technician safety during maintenance.
- Quick-Action Switching: The quick-make and break action reduces contact erosion and ensures consistent performance under load.
- Interlock Safety: Features a single-cover interlock to prevent access to the internal chamber while the switch is in the 'ON' position.
- Flexible HP Ratings: Supports motors up to 2 HP at 120V, making it a versatile choice for fans, pumps, and blowers.
- Compact NEMA 1 Enclosure: Designed for space-saving indoor surface mounting with standard 1/2-inch and 3/4-inch knockouts for easier conduit integration.
What type of fuses are compatible with the Siemens LF111N?
This switch is designed to accommodate standard Type S or Type T plug fuses (Edison base) up to a 30-ampere rating. Professionals typically use time-delay fuses for motor applications to handle initial startup inrush current.
Is the LF111N suitable for use as service entrance equipment?
Yes, this unit is UL-listed as suitable for use as service entrance equipment when installed according to NEC requirements, providing a necessary disconnect point for single-phase systems.
Can I use this switch in outdoor or damp locations?
No, the Siemens LF111N is housed in a NEMA 1 enclosure, which is specifically designed for indoor, dry-use environments. For outdoor applications, a NEMA 3R rated enclosure should be selected.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
