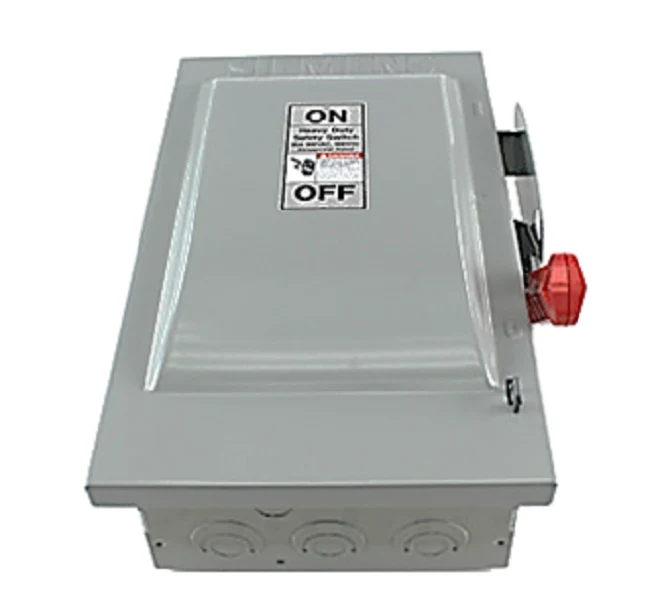

Siemens Industrial Controls HF362 Disconnect
The Siemens HF362 is a cornerstone in heavy-duty circuit protection, serving as a 60A 3-pole fusible safety switch designed for demanding industrial and commercial HVACR applications. Engineered for 600V AC/DC operational environments, this unit provides a reliable heavy-duty disconnect for motors, heat pumps, and high-voltage power distribution systems. The NEMA 1 enclosure is optimized for indoor installations, featuring a robust steel construction that meets critical NEC wire bending space requirements. For technicians, the visible blade, double-break switching action, and quick-make, quick-break mechanism provide positive operation and clear indication of circuit status.
This VBII series safety switch is UL listed and supports Class H, J, K, and R fuses. When utilizing time-delay fuses, it maintains a short circuit current rating (SCCR) up to 200 kA, making it ideal for protecting 3-phase motor circuits up to 50 HP. The triple-pole single-throw (3PST) design includes field-convertible mechanical lugs suitable for copper or aluminum conductors (14-2 AWG). Whether you are performing a new rooftop replacement or updating a plant's electrical infrastructure, the Siemens 60 amp disconnect offers the durability and safety interlocking features necessary for veteran contractors.
- Universal Fuse Compatibility: Accommodates Class R, J, T, and H fuses, allowing for field conversion and varied AIC ratings up to 200 kA.
- Rugged NEMA 1 Housing: Durable steel enclosure with tangential knockouts for efficient conduit alignment and a door that opens 180 degrees for easier wiring access.
- Superior Arc Management: Features arc chutes to dissipate heat quickly, extending the lifecycle of the copper current-carrying components.
- Enhanced Safety Interlocks: Integrated defeatable dual-cover interlock prevents the door from opening while the switch is ON.
- High Horsepower Rating: Capable of managing inductive loads up to 50 HP at 600V when used with appropriate time-delay fusing.
Common Questions
What is the maximum horsepower rating for the HF362?
This disconnect is rated for up to 15 HP at 480V and up to 50 HP at 600V 3-phase systems when paired with time-delay fuses.
Does the HF362 come with a neutral bar?
No, this model is a standard 3-wire fusible switch. If your application requires a neutral connection, a neutral kit must be ordered separately for field installation.
Can the handle be locked for LOTO (Lockout/Tagout) procedures?
Yes, the handle is designed to be padlocked in the OFF position with up to three individual padlocks, ensuring compliance with OSHA safety standards.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
