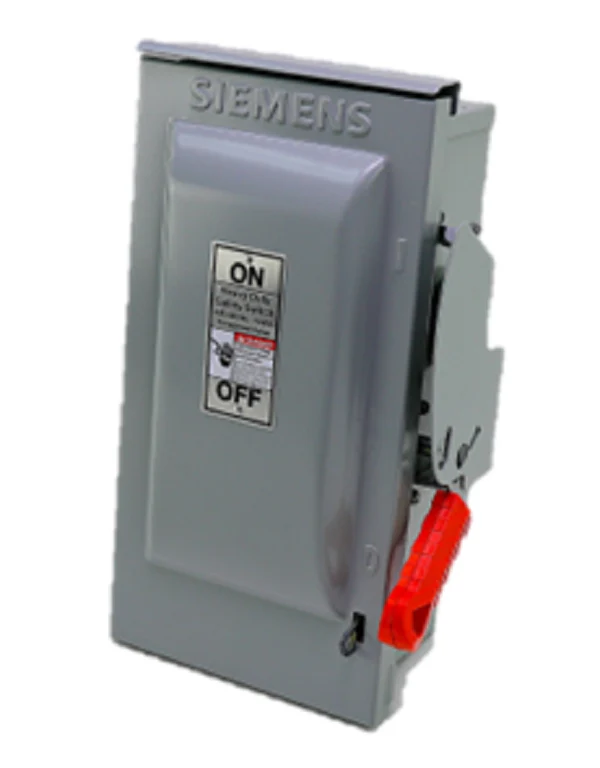

Siemens Industrial Controls HF361R Switch
The Siemens HF361R is a Heavy Duty Safety Switch engineered for demanding industrial and commercial HVACR applications. This 30A 3P 600V 3W Fused Switch features a NEMA 3R enclosure, making it suitable for outdoor environments where protection against rain, sleet, and external ice formation is mandatory. Built with visible blade construction and a quick-make, quick-break operating mechanism, this unit ensures positive operation and reliable circuit isolation. The steel enclosure utilizes a side-hinged door that opens past 180 degrees, providing contractors with ample gutter space for efficient wiring and lug access. Tangential knockouts simplify conduit lineup, significantly reducing installation time in the field.
This fusible disconnect is designed to handle high fault currents, providing 200,000 AIC protection when used with Class R or J fuses. The HF361R includes a defeatable dual cover interlock and a highly visible red handle grip compatible with hook stick operation. It is UL98 listed and suitable for use as service entrance equipment. For enhanced safety, the handle can be padlocked in the "OFF" position with up to three padlocks, ensuring secure lockout/tagout (LOTO) procedures during maintenance.
Key Benefits- Enhanced Safety: The visible blade design allows technicians to verify current interruption at a glance, while the dual cover interlock prevents access when the switch is energized.
- Superior Arc Suppression: Integrated arc chutes effectively dissipate heat, extending the service life of internal contacts under heavy loads.
- Field Versatility: Lugs are field-convertible and suitable for CU/AL 60°C or 75°C conductors, facilitating quick adjustments to existing site conditions.
- Durability: The NEMA 3R rated steel housing is finished with baked enamel to resist corrosion and structural abuse in harsh outdoor settings.
Can the Siemens HF361R be converted for Class J fusing?
Yes. This 600V rated switch is field-convertible to accept Class J fuses by relocating the load base to the designated position within the enclosure.
What is the maximum horsepower rating for this switch?
The Siemens HF361R is rated for up to 7-1/2 HP at 480V/600V AC in 3-phase applications when used with appropriate time-delay fuses.
Is a neutral kit included with the HF361R?
This is a 3-wire, 3-pole configuration. If a neutral is required for your specific installation, a field-addable neutral kit (such as the HN612) must be purchased separately.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
