Siemens Industrial Controls GNF323R Switch

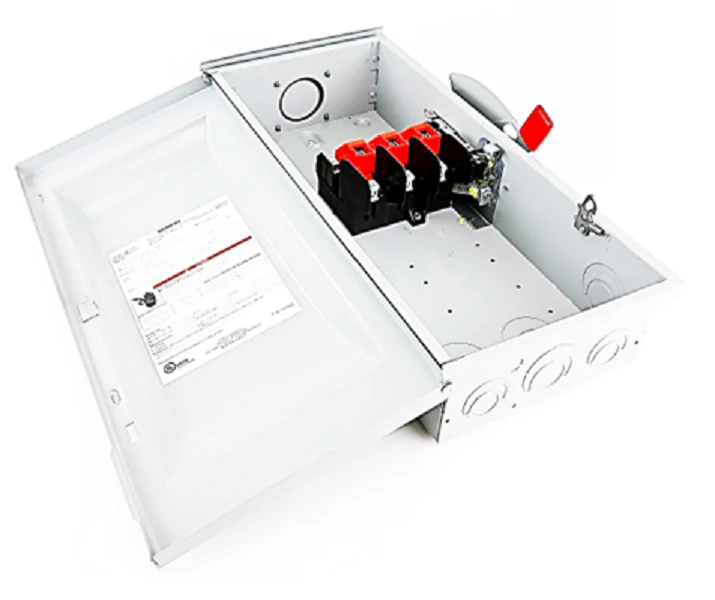

The Siemens GNF323R is a 100A, 3-pole, 240V non-fusible safety switch engineered for heavy-duty field performance in electrical distribution and industrial control systems. This NEMA type 3R disconnect is housed in a rugged galvanized steel enclosure, specifically designed for outdoor service entrance and HVACR applications where rain and ice protection are mandatory. As a general duty safety switch, it utilizes a visible blade, double-break design to ensure physical isolation of the line and load terminals during maintenance, providing clear visual confirmation of the circuit state. The single throw actuating lever is highly visible in red and supports padlocking provisions to enforce strict lockout/tagout protocols for site safety.
For contractors, the VBII series design incorporates tangential knockouts and mechanical lugs rated for 60/75°C wire, streamlining integration into existing conduit runs. This 3-wire, non-fused switch is suitable for 240VAC or 250VDC systems, with a 3-phase motor rating of 30HP at 240V. Whether you are installing service entrance equipment for a residential complex or a dedicated outdoor electrical disconnect for commercial equipment, the GNF323R provides the UL 98 listed reliability expected from Siemens industrial controls.
Key Benefits for Technicians:- Outdoor Duty Construction: The NEMA 3R rainproof enclosure is built from galvanized steel with a powder-coated finish for maximum corrosion resistance in external environments.
- Enhanced Safety Mechanism: Features a quick-make, quick-break engine that ensures rapid contact closure and opening, reducing internal arcing and extending component life.
- Flexible Mounting: Equipped with dual mounting points and tangential knockouts which simplify conduit alignment and reduce installation time on the job site.
- High HP Capacity: Rated for up to 30 HP at 240VAC, making it a robust solution for switching 3-phase motor loads and large HVAC condensers.
- Is the Siemens GNF323R suitable for use as service entrance equipment? Yes, when utilized with the appropriate ground bar and neutral kits, this unit is service entrance labeled for 3-phase systems.
- Can this safety switch be used in 250V DC applications? Yes, the Siemens GNF323R is rated for 250VDC at 20HP, providing versatile protection for various industrial power systems.
- Does this enclosure include a factory-installed neutral? No, this is a 3-wire non-fusible switch typically used for applications not requiring a neutral connection; however, neutral kits can be field-installed if required by the application.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
