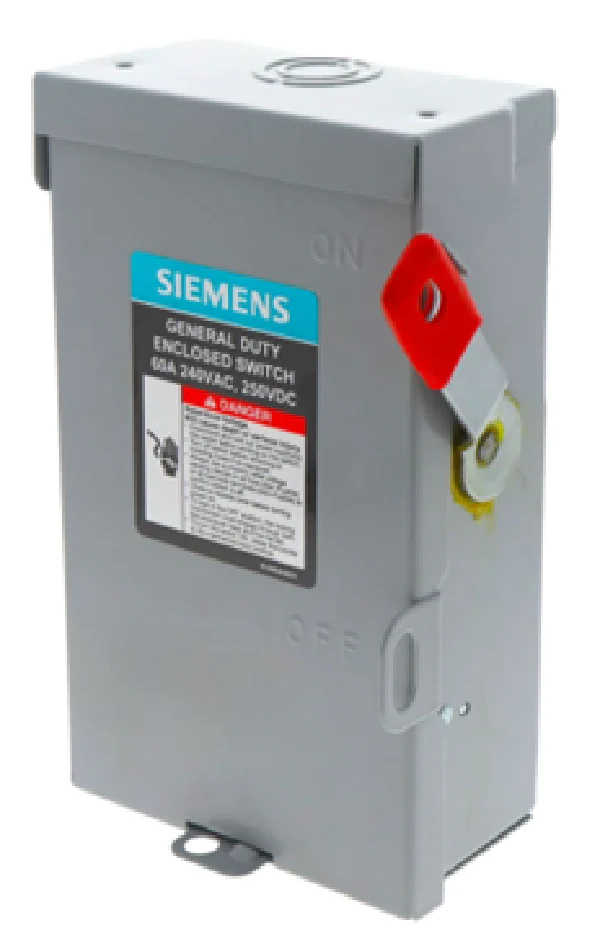

Siemens Industrial Controls GNF322A Safety Switch
The Siemens GNF322A is a 60 Amp, 3-pole, 3-wire non-fusible safety switch engineered for reliable equipment isolation in professional HVACR and industrial electrical environments. Rated for 240V AC and 250V DC applications, this general-duty disconnect features a NEMA 1 enclosure, making it a standard choice for indoor installations such as commercial air handlers, rooftop units, and local motor disconnect requirements. Built with a visible blade, double-break switching action, it provides a clear physical disconnect to ensure technician safety during system maintenance or emergency shutdowns.
This Siemens safety disconnect switch is designed for high-performance durability with a quick-make, quick-break operating mechanism that prevents arcing and extends contact life. The compact steel housing includes tangential knockouts to simplify conduit alignment and mechanical lugs for secure field wiring. With a highly visible red handle and integrated padlocking provisions, the GNF322A meets stringent code requirements for lockable service disconnects in multi-phase motor loads up to 15 HP. Its performance is rated for up to 100 kA short circuit current rating (SCCR) when paired with appropriate upstream protection, ensuring robust protection for sensitive facility equipment.
Key Benefits:- 60A 240V safety switch capability for 1-phase and 3-phase commercial HVAC configurations.
- Non-fusible disconnect design provides a manual isolation point without the need for internal fuse management.
- Heavy-duty NEMA 1 indoor enclosure protects internal components from dust and debris in mechanical rooms.
- Visible double-break blades and a lockable red handle ensure compliance with OSHA lockout/tagout (LOTO) procedures.
- High-capacity rating supports 3-phase motor loads up to 15 HP at 240 VAC.
Is the Siemens GNF322A suitable for outdoor use?
No, this model features a NEMA 1 enclosure specifically designed for indoor applications. For outdoor or weather-exposed installations, a NEMA 3R rated disconnect should be used.
Can this switch be used as service entrance equipment?
Yes, the GNF322A is UL listed as suitable for use as service entrance equipment when installed according to the National Electrical Code (NEC).
What is the maximum horsepower rating for this 60A switch?
This disconnect is rated for up to 10 HP for 1-phase 240V AC systems and up to 15 HP for 3-phase 240V AC motor loads.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
