Siemens Industrial Controls 75HF14 Repair Kit

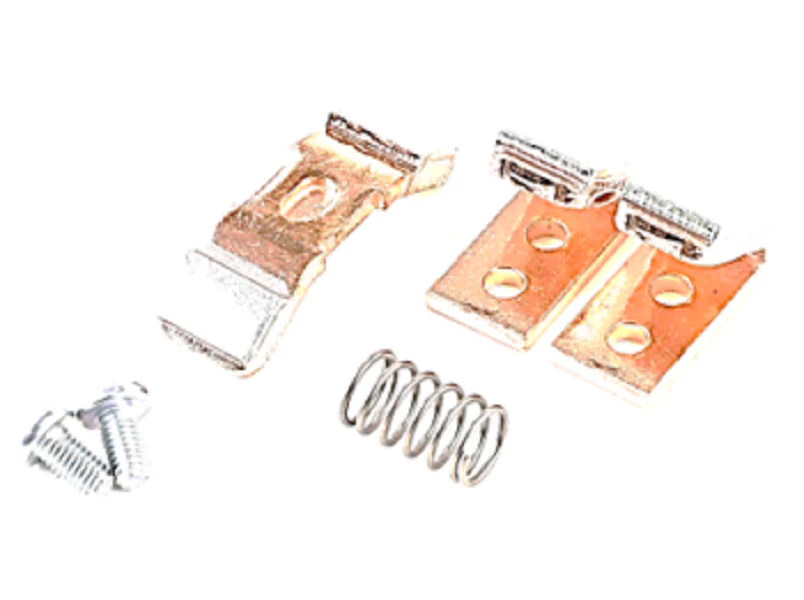

When you are troubleshooting a NEMA Size 3 motor starter and find pitted or charred contact surfaces, the Siemens 75HF14 Repair Kit is the essential service component for restoring full conductivity and arc suppression. This 1-pole replacement contact kit is engineered for high-demand industrial applications, supporting 90 Amp loads and voltages up to 600 VAC. Designed for Siemens Multiple Class Contactors and motor controllers, this kit includes everything a technician needs for a complete phase rebuild: precisely machined stationary contacts, movable contacts, and high-tension pressure springs. Using genuine Siemens industrial control parts ensures proper mechanical alignment and electrical clearance, which are critical for preventing phase imbalance or premature coil failure in Innova 45 series units. This kit provides a reliable path for maintaining 14HF, 40HF, and 22HF starter blocks without replacing the entire magnetic motor starter assembly, effectively reducing downtime and maintaining the integrity of the original control panel wiring.
Key Benefits- Precision Metallurgy: High-grade silver alloy contacts engineered to minimize electrical resistance and withstand high-frequency switching cycles.
- Complete Phase Restoration: Includes both movable and stationary contact tips plus new springs to ensure consistent contact pressure across the NEMA Size 3 frame.
- Direct OEM Compatibility: Specifically designed for Siemens and Furnas Class 14, 22, 40, and 43 starters, ensuring a perfect mechanical fit without field modifications.
- Enhanced Arc Quenching: Quality spring tension and contact geometry help extinguish arcs quickly, protecting the internal housing from carbon tracking.
What is the amperage rating for the 75HF14 kit?
This kit is rated for 90 Amps at a maximum voltage of 600V, specifically for NEMA Size 3 applications.
Does this kit cover all three poles of a contactor?
No, the 75HF14 is a 1-pole repair kit. For a standard 3-phase motor starter, you should order three kits to ensure uniform wear and electrical balance across all phases.
How do I know when to replace the contacts versus cleaning them?
If the silver cadmium oxide face is worn down to the base copper or if the contact surface is severely pitted, replacement contacts are required. Siemens dry-contact designs should never be filed or lubricated.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
