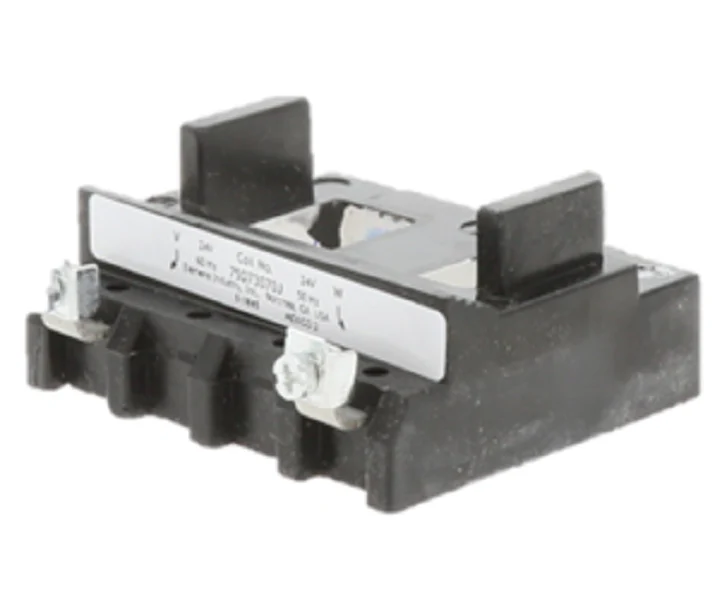

Siemens Industrial Controls 75D73070J Coil
The Siemens 75D73070J Coil is a heavy-duty 24V AC replacement coil engineered for precise magnetic actuation in NEMA Size 00, 0, 1, 2, and 2-1/2 motor starters and contactors. Designed as a direct drop-in for Furnas and Siemens Class 14, 17, 18, 22, 25, 26, 30, 32, 40, and 43 control series, this coil operates reliably at 50/60 Hz. It features a fully encapsulated molded design that protects the copper windings from the harsh vibration, moisture, and thermal cycling common in industrial HVACR and motor control environments. With a pull-in rating of 218 VA and a sealed consumption of 25 VA, this magnetic coil ensures consistent holding force and snappy armature response. The snap-in mounting and screw clamp terminals allow for rapid field installation, minimizing downtime during critical service calls or panel upgrades.
Key Benefits- Broad NEMA Compatibility: Fits industrial starters from NEMA Size 00 through 2-1/2, reducing the need to stock multiple SKUs for different frame sizes.
- Rugged Encapsulation: The molded physical housing resists environmental contaminants and ensures high dielectric strength across the 24V control circuit.
- Direct OEM Replacement: Replaces legacy Furnas 75D73070J parts in heavy-duty motor control applications, including pump panels and reversing starters.
- Efficient Power Profile: Optimized 218 VA inrush and 25 VA sealed ratings provide reliable switching without overloading standard 24V control transformers.
- Is this coil compatible with both Siemens and legacy Furnas starters? Yes, the 75D73070J is the standard 24V replacement for both brands across Class 14 through 43 equipment.
- Does this coil handle 50Hz and 60Hz frequencies? Yes, it is rated for 24V AC at 50/60 Hz, making it suitable for a variety of domestic and international power configurations.
- How do I verify the NEMA size before installation? Check the data plate on your contactor or starter; this specific coil is calibrated for frames ranging from Size 00 to Size 2.5.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
