Siemens Industrial Controls 75D73070C Coil

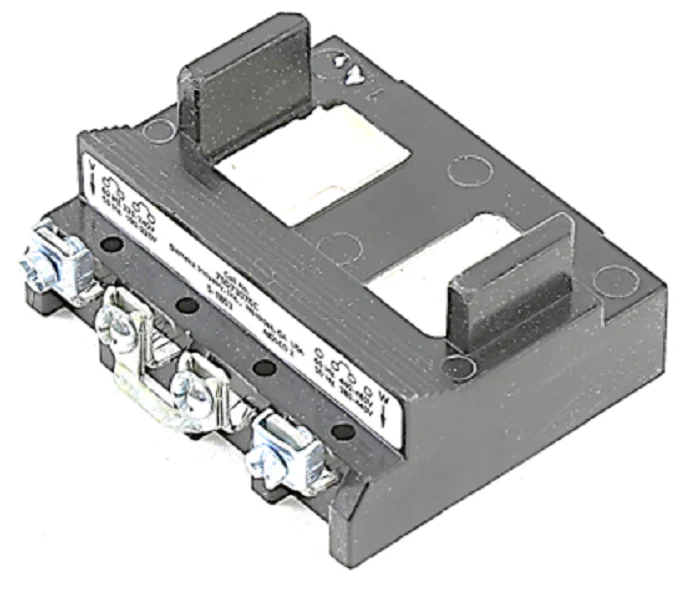

The Siemens 75D73070C Coil is a heavy-duty NEMA motor starter replacement coil engineered for reliable performance across a broad range of industrial control applications. This dual voltage coil is rated for 220-240V / 440-480V AC at 60Hz and 190-220V / 380-440V AC at 50Hz, providing the versatility needed for various line power configurations. Specifically designed for NEMA Size 00 through 2.5 hardware, this magnetic coil is compatible with Siemens and Furnas Class 14, 17, 18, 22, 25, 26, 30, 32, 40, and 43 contactors and starters. The piece features a robust encapsulated construction with screw terminals for secure electrical connections and a snap-in mounting design that allows for rapid field replacement without complete disassembly of the controller. With a clear focus on technical durability, this coil handles 218 VA pull-in and 25 VA drop-out requirements, ensuring consistent armature seating and reduced chatter in demanding polyphase motor environments.
Key Benefits- Broad NEMA Compatibility: Fits Siemens and Furnas NEMA Size 00, 0, 1, 2, and 2.5 starters.
- Dual Voltage Rating: Operates at 240V/480V 60Hz or 220V/440V 50Hz for global application flexibility.
- Efficient Field Service: Snap-in mounting and screw connections minimize downtime during maintenance cycles.
- High Thermal Stability: Encapsulated coil design protects internal windings from vibration and environmental contaminants.
What NEMA framework classes is this coil compatible with?
This coil is matched for use with Siemens Class 14, 17, 18, 22, 25, 26, 30, 32, 36, 37, 40, 43, 83, 84, 87, and 88 magnetic starters and contactors.
How do I adjust the voltage setting on this unit?
Voltage selection is managed through high/low jumper terminal configurations on the coil face, allowing for either 240V or 480V operation.
Can I use this for both 50Hz and 60Hz applications?
Yes, it is rated for 50/60Hz duty, though it is primarily optimized for 60Hz industrial power systems in North America.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
