Siemens Industrial Controls 74G Valve Positioner

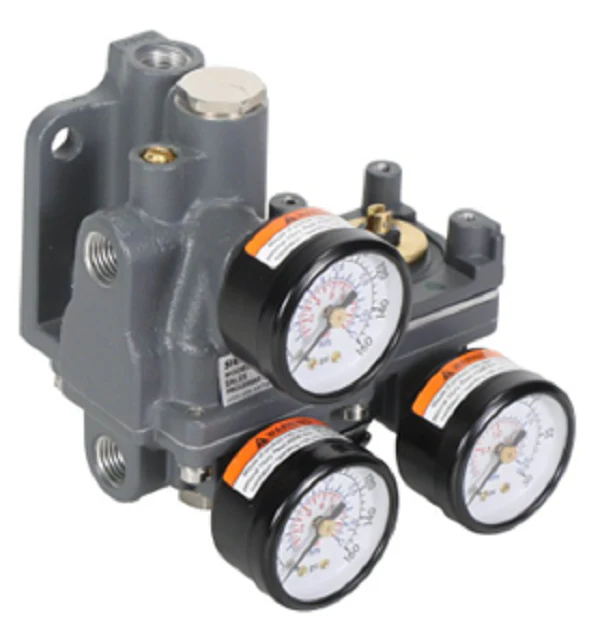

The Siemens Industrial Controls 74G Valve Positioner is a high-performance pneumatic valve positioner engineered for precision control in demanding industrial environments. As a two-stage pilot-operated device, the Model 74G utilizes a sophisticated negative feedback pilot circuit to maintain stable valve positioning despite supply pressure fluctuations, achieving high-gain ratios for responsive "push-pull" action. This model is integrated with three 0-30 PSI gauges for real-time monitoring of input and output signals, supporting a maximum supply pressure of 150 PSI. Designed for maximum field flexibility, it features a field-reversible design and an adjustable stroke range from 1/4" to 48", making it compatible with both double-acting or single-acting actuators. Whether you are managing chemical processing or power generation systems, this industrial valve controller minimizes the need for external pressure regulators, ensuring high-frequency response and fast stroking speeds even with large-volume diaphragm or piston actuators.
Technical Benefits for Contractors
- High-Capacity Pilots: Delivers superior air delivery and exhaust rates, ensuring rapid response times for critical process control valve adjustments.
- Dynamic Stability: The dual-output booster system maintains a high 900:1 gain ratio, providing rock-solid positioning without hunting or oscillation.
- Universal Compatibility: Easily transitions between direct and reverse acting modes and supports a wide range of valve travel lengths.
- Reduced Maintenance: Engineered with a simplified pilot valve assembly to minimize downtime and simplify on-site troubleshooting.
- Rugged Enclosure: Built to withstand harsh industrial atmospheric conditions while maintaining precise pneumatic actuator control.
Common Questions
Can the Siemens 74G be used with single-acting actuators?
Yes. While it is designed for double-acting service, you can easily plug one of the pilot-booster ports to accommodate spring-return or single-acting pneumatic actuators.
How does this positioner handle supply pressure variations?
The Model 74G features advanced pressure compensation that minimizes the effect of supply air fluctuations, often eliminating the requirement for a dedicated filter regulator at each valve station.
Is the stroke range adjustable in the field?
Yes, the unit supports an adjustable stroke range from 1/4 inch up to 48 inches, allowing for seamless integration with a variety of valve types and sizes.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $1,322.14
-65%$1,322.14
$462.75Siemens Industrial Controls 74G Valve Positioner
