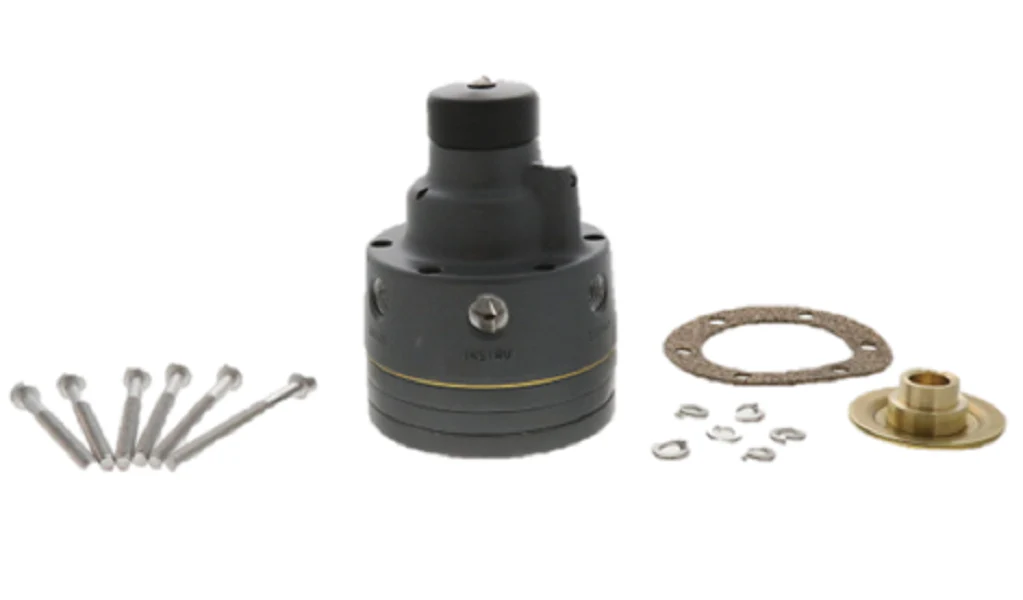

Siemens Industrial Controls 73N-B Valve Positioner
The Siemens Industrial Controls 73N-B Valve Positioner is a heavy-duty, direct-acting valve positioner engineered for high-precision pneumatic actuator control in demanding industrial environments. Utilizing a single-axis force-balance principle, this top-mounted valve positioner ensures stable and accurate positioning for flow, temperature, and pressure control systems. Specifically designed for bottom-loading applications, it is the standard choice for springless pneumatic actuators that utilize a top air-cushion load. The 73N-B is capable of harnessing the full force of the 100 psig supply pressure to drive the valve to the exact setpoint dictated by the 3-15 psi input signal. Its rugged construction supports a wide operating temperature range from -40°F to +180°F, making it suitable for chemical processing, power generation, and critical HVACR infrastructure. Technical technicians appreciate the calibrated range spring versatility, which accommodates valve stroke lengths from 1/4 inch to 4 inches with high repeatability and minimal air consumption.
Key Benefits:
- Force-Balance Reliability: Employs a single-axis force-balance mechanism to maintain precise valve travel and prevent hunting.
- High Operational Pressure: Supports a maximum supply pressure of 100 psi, ensuring enough force to move heavy actuator assemblies.
- Versatile Compatibility: Designed for direct acting control, providing an increase in output pressure as the instrument signal increases.
- Environmental Resilience: Functional in extreme conditions with a standard temperature limit of 180°F.
- Minimal Air Waste: Efficient balancing pilot design limits steady-state air consumption to approximately 0.6 SCFM.
Common Questions:
- What type of actuators are compatible with the 73N-B? This model is specifically intended for springless pneumatic actuators that require a cushion load on top of the diaphragm or piston.
- Can the input signal range be adjusted? While 3-15 psi is standard, the unit can be configured for 3-9, 9-15, and 3-27 psi spans by selecting the appropriate range spring.
- How is zero adjustment performed? Zeroing is handled via the adjustment screw on the top works, allowing the technician to synchronize the mid-point of the instrument span with the mid-point of the valve stroke.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
