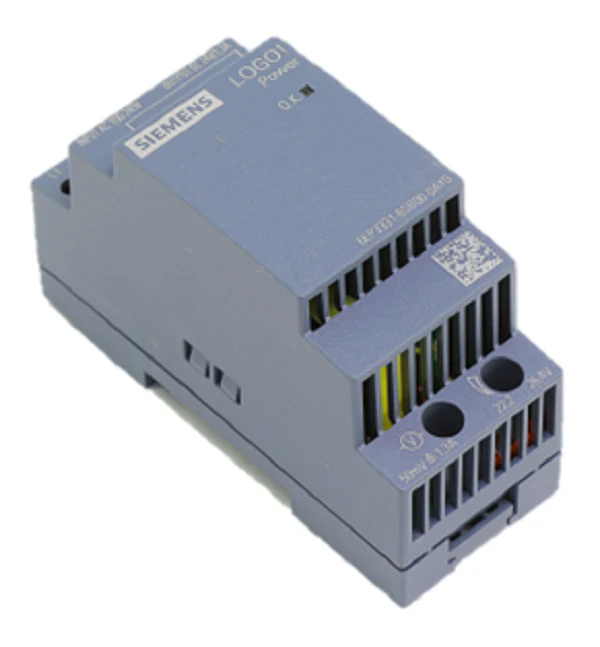

Siemens Industrial Controls 6EP3331-6SB00-0AY0 Power Supply
The Siemens 6EP3331-6SB00-0AY0 is a high-performance stabilized power supply from the LOGO!Power series, engineered specifically for industrial automation and control cabinet applications. This single-phase AC/DC unit provides a precise 24V DC output at 1.3 Amps, making it the standard choice for powering LOGO! logic modules and sensitive instrumentation. Its signature flat stepped profile allows for seamless integration into distribution boards with a modular width of just 36mm, maximizing available rail space. Designed for global versatility, the wide-range input handles 115/230V AC nominal values (85-264V AC) and 110-300V DC, ensuring reliable operation across varying power grids. Technical features like short-circuit protection, constant current for capacitive loads, and a high efficiency rating of 86% minimize thermal load in the cabinet. For field diagnostics, the integrated green LED provides an immediate "DC OK" status, while the adjustable output voltage (22.2 to 26.4V) allows for lead-loss compensation on extended cable runs.
Key Benefits
- Compact DIN Rail Design: Small 36mm footprint with a flat stepped profile provides easy installation in shallow distribution boards alongside LOGO! 8 modules.
- Global Compatibility: The single-phase wide-range input supports 100V to 240V AC and DC power networks without manual switching.
- Industrial Durability: Operates efficiently across a wide temperature range of -25°C to +70°C, suitable for demanding HVACR environments.
- Precise Power Delivery: Features stabilized 24V DC output with minimal residual ripple and an adjustable potentiometer for fine-tuning voltage requirements.
- Safe Operation: Built-in overload protection and radio interference suppression (Class B) ensure local interference-free environments.
Common Questions
Can the 6EP3331-6SB00-0AY0 be used for DC input?
Yes, this unit is highly flexible and accepts a DC input range from 110V to 300V, making it suitable for redundant or specialized battery-backed industrial systems.
Is this power supply compatible with LOGO! 8 modules?
Absolutely. Its design, dimensions, and output characteristics are specifically matched to the Siemens LOGO! logic series for consistent performance and professional finish in control boxes.
How do I adjust the output voltage?
The unit features a front-facing potentiometer that allows the 24V DC output to be adjusted between 22.2V and 26.4V DC to compensate for voltage drops on long wire runs to the load.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
