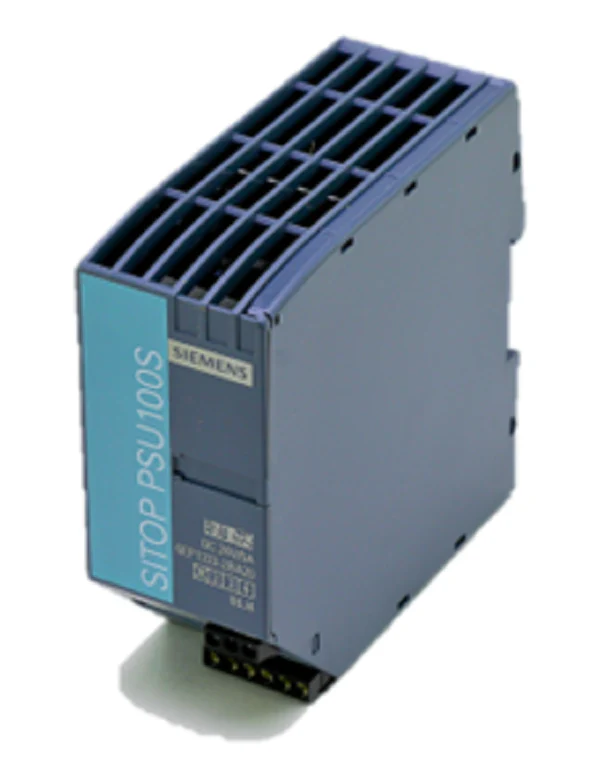

Siemens Industrial Controls 6EP1333-2BA20 Power Supply
The Siemens SITOP PSU100S 6EP1333-2BA20 is a high-performance, single-phase 24VDC 5A Power Supply engineered for demanding industrial and HVACR control systems. This stabilized power supply features an automatic range selection for 120/230V AC input, ensuring seamless integration into various line voltages without manual switching. Designed with a slim 50mm width, it maximizes DIN rail space, while its 88% efficiency rating minimizes heat dissipation within the enclosure. The unit delivers a consistent 120W output and can handle a permanent overload capacity of 120% up to 45°C, providing the necessary overhead for system expansions or high-draw actuators and solenoids. A built-in signaling contact (24V OK) allows for real-time remote monitoring, and the front-mounted potentiometer enables fine-tuning of the output voltage between 22.8 and 28V to compensate for voltage drops in long cable runs. This industrial power supply is short-circuit proof and ruggedized for reliable performance in temperatures ranging from -10°C to +70°C.
Key Benefits for Technicians- Overload-Resistant Performance: Provides 120% continuous power at up to 45°C, supporting additional control components without upgrading the PSU.
- Slimline Design: Narrow footprint requires no lateral clearances, saving valuable space on the standard mounting rail (TH35-15/7.5).
- Integrated Diagnostics: Features a green LED indicator and a signaling relay contact for instant visual and controller-level status verification.
- Efficient Thermal Management: High efficiency reduces cooling requirements and potential thermal stresses on neighboring components in the control cabinet.
- Flexible Input: Automatic 120/230VAC range selection eliminates the risk of damage due to incorrect voltage settings during installation.
How do I adjust the output voltage for long cable runs?
Use an insulated screwdriver to adjust the front potentiometer. The 6EP1333-2BA20 permits adjustment between 22.8V and 28V DC; however, note that derating applies if the output voltage is increased above 24V or if operating in high ambient temperatures.
What type of short-circuit protection is integrated?
The SITOP PSU100S utilizes electronic short-circuit protection. In the event of an overload, the unit maintains a constant current or performs a shut-down/restart (hiccup mode) depending on the specific fault conditions, preventing transformer burnout.
Does this unit support parallel operation for increased current?
Yes, identical PSU100S units can be connected in parallel to increase power through the use of external redundancy or selectivity modules, ensuring higher availability for critical HVACR infrastructure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
