Siemens Industrial Controls 49SDPB5 Kit

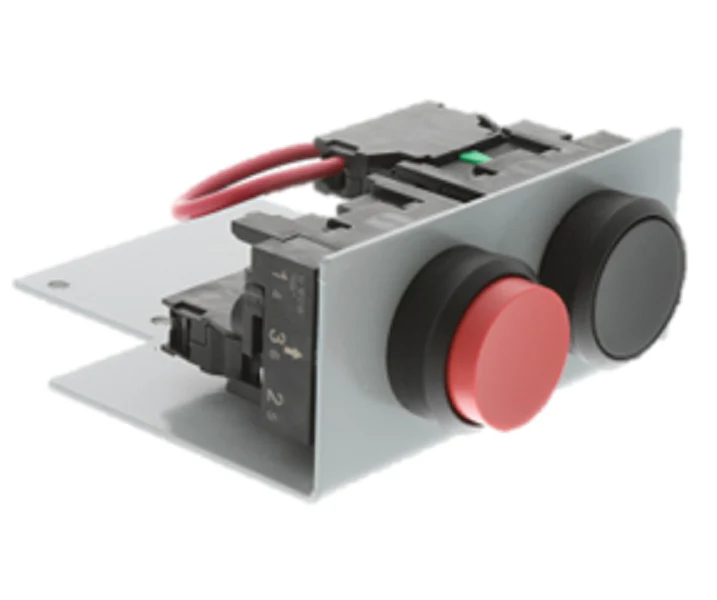

For industrial HVACR and motor control applications requiring localized manual override, the Siemens 49SDPB5 Start-Stop Pushbutton Sw Kit provides a robust field-installation solution. This kit is specifically designed for NEMA Type 1 clamshell enclosures, housing Class 14, 22, 30, 40, and 43 starters as well as 3RE4, 3RT, 3RA, and 3RW series contactors. Featuring a heavy-duty 22mm circular cutout design, the unit utilizes momentary 3-wire control logic to ensure safety and prevent accidental restarts after power interruptions. The modular assembly includes a flush-mounted black "Start" pushbutton and an extended red "Stop" pushbutton, ensuring clear tactile feedback and visibility for operators. Built for durability in demanding environments, the silver alloy contacts provide a mechanical service life of up to 10 million cycles. The kit comes complete with a dedicated mounting bracket, screw terminals rated for 7-8 lbf-in torque, and pre-cut 18-16 AWG control wiring for streamlined technical integration.
Key Benefits- Universal Compatibility: Engineered for seamless integration with Siemens SIRIUS 3RT contactors and Class 14 NEMA starters within clamshell-style enclosures.
- Industrial Durability: Rated for an ambient operating range of -20°C to +40°C with silver alloy contacts designed for high-frequency switching.
- Enhanced Safety: Momentary start-stop control configuration prevents automatic equipment re-energization, meeting standard industrial safety protocols.
- Streamlined Installation: Comprehensive pushbutton kit includes all necessary legend plates, wiring, and mounting hardware to reduce field labor time.
Is the 49SDPB5 compatible with NEMA 3R or 4X enclosures?
This specific kit utilizes a bracket and legend plate system optimized for Siemens NEMA 1 clamshell enclosures. For watertight or oil-tight applications (NEMA 4/12/13), a specialized 30mm heavy-duty pilot device may be required.
Does this kit support 2nd or 3rd-speed control for multi-speed starters?
The Siemens 49SDPB5 is configured for standard Start-Stop operation. For high-off-low or multi-position requirements, technicians should specify the 49SDSBJ selector switch kit.
What is the maximum wire gauge for the screw terminals?
The control connection terminals are engineered for 2x (18...16 AWG) multi-stranded copper conductors to maintain secure electrical integrity under vibration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Siemens Industrial Controls 49SDPB5 Kit
For industrial HVACR and motor control applications requiring localized manual override, the Siemens 49SDPB5 Start-Stop Pushbutton Sw Kit provides a robust field-installation solution. This kit is specifically designed for NEMA Type 1 clamshell enclosures, housing Class 14, 22, 30, 40, and 43 starters as well as 3RE4, 3RT, 3RA, and 3RW series contactors. Featuring a heavy-duty 22mm circular cutout design, the unit utilizes momentary 3-wire control logic to ensure safety and prevent accidental restarts after power interruptions. The modular assembly includes a flush-mounted black "Start" pushbutton and an extended red "Stop" pushbutton, ensuring clear tactile feedback and visibility for operators. Built for durability in demanding environments, the silver alloy contacts provide a mechanical service life of up to 10 million cycles. The kit comes complete with a dedicated mounting bracket, screw terminals rated for 7-8 lbf-in torque, and pre-cut 18-16 AWG control wiring for streamlined technical integration.
Key Benefits- Universal Compatibility: Engineered for seamless integration with Siemens SIRIUS 3RT contactors and Class 14 NEMA starters within clamshell-style enclosures.
- Industrial Durability: Rated for an ambient operating range of -20°C to +40°C with silver alloy contacts designed for high-frequency switching.
- Enhanced Safety: Momentary start-stop control configuration prevents automatic equipment re-energization, meeting standard industrial safety protocols.
- Streamlined Installation: Comprehensive pushbutton kit includes all necessary legend plates, wiring, and mounting hardware to reduce field labor time.
Is the 49SDPB5 compatible with NEMA 3R or 4X enclosures?
This specific kit utilizes a bracket and legend plate system optimized for Siemens NEMA 1 clamshell enclosures. For watertight or oil-tight applications (NEMA 4/12/13), a specialized 30mm heavy-duty pilot device may be required.
Does this kit support 2nd or 3rd-speed control for multi-speed starters?
The Siemens 49SDPB5 is configured for standard Start-Stop operation. For high-off-low or multi-position requirements, technicians should specify the 49SDSBJ selector switch kit.
What is the maximum wire gauge for the screw terminals?
The control connection terminals are engineered for 2x (18...16 AWG) multi-stranded copper conductors to maintain secure electrical integrity under vibration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
