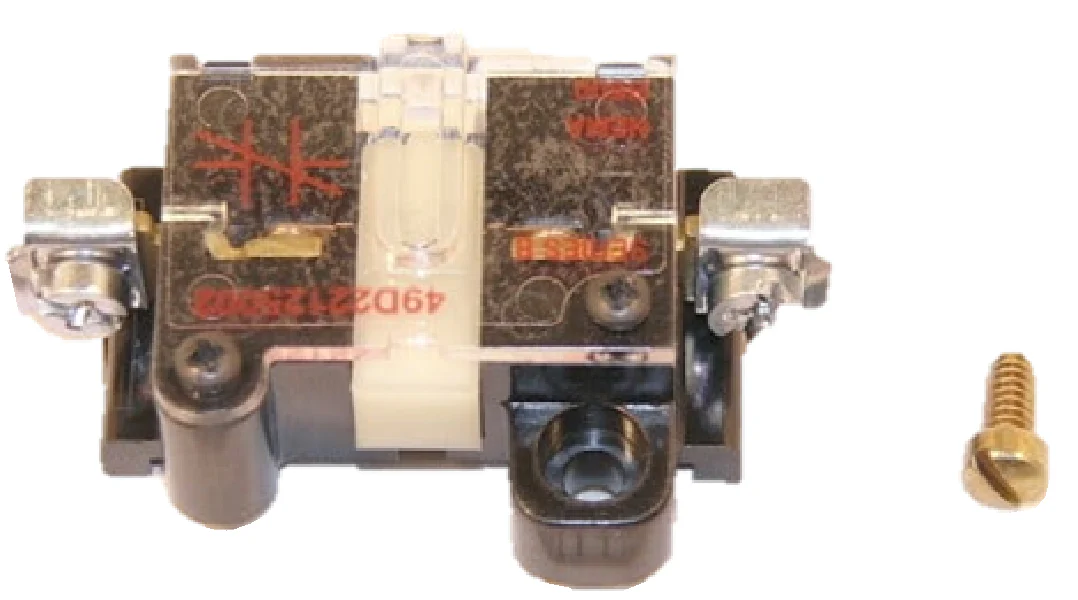

Siemens Industrial Controls 49D22125002 Switch
The Siemens 49D22125002 is a professional-grade normally closed auxiliary switch engineered specifically for integration with 75A and 90A definite purpose contactors. As a veteran in the field, you know that maintaining circuit continuity for status feedback and safety protocols is non-negotiable in industrial motor control. This 1-NC (normally closed) unit is designed to snap onto the side of Siemens Class 42 (specifically 42FE and 42GE frame sizes) and Class 16 contactors, providing a reliable auxiliary contact for interlocking or control signaling without the need for complex mounting hardware.
Constructed for the rigors of heavy-duty HVACR control systems, this switch features a robust NEMA B600 rating and can handle up to 600 VAC applications. The direct-mount design and screw terminal interface facilitate a fast, secure fit-up, ensuring that your compressive control circuits and system indicators provide accurate, real-time feedback. When your installation requires precise auxiliary circuit control on high-amperage contactors, the 49D22125002 delivers the rugged dependability required for mission-critical industrial environments.
Key Benefits:- 1-NC Configuration: Provides essential normally closed circuit continuity for fail-safe interlocking and system status monitoring.
- High Amperage Compatibility: Precision-engineered for 75 Amp and 90 Amp Siemens and Furnas definite purpose contactors.
- Industrial Durability: NEMA B600 rated for reliable performance in 600 VAC motor control environments.
- Snap-on Side Mounting: Simplifies field logistics with a direct-mount design compatible with 42FE and 42GE frames.
- Screw Terminal Connections: Ensures high-vibration resistance and positive electrical contact for HVACR control logic.
What contactor frames are compatible with this switch?
The 49D22125002 is specifically designed for Siemens/Furnas Class 42 (42FE and 42GE frames) and Class 16 contactors rated for 75-90 Amps.
Can this be used for status indication?
Yes, as a normally closed auxiliary switch, it is frequently utilized for status feedback, signaling when the main contactor is in the de-energized state.
Does this switch require additional mounting brackets?
No, this unit is a side-mount, snap-on component designed for direct integration with the contactor body.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
