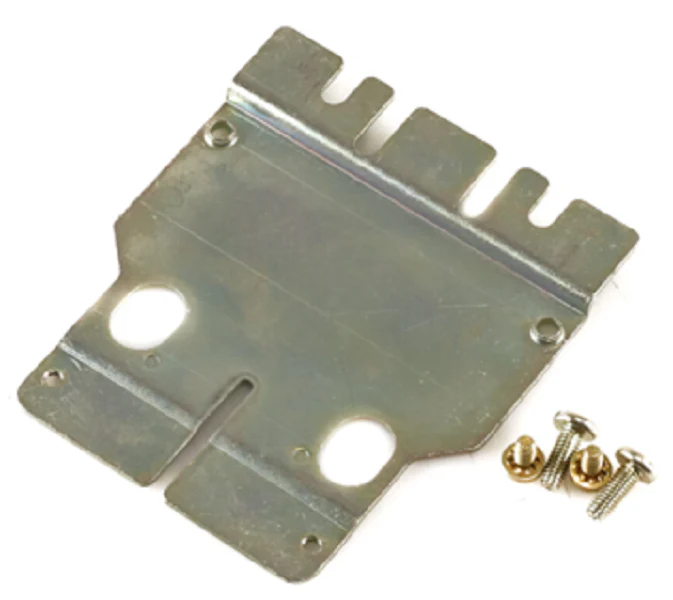

Siemens Industrial Controls 49ASMP1 Mounting Plate
The Siemens 49ASMP1 Mounting Plate is a rugged, application-specific installation accessory engineered for field retrofits and panel assemblies. Designed for high-reliability in industrial motor control environments, this NEMA starter mounting plate provides a stable substrate for Open NEMA contactors and ESP100/ESP200 solid-state overload relay (SSOLR) integrations. Its specific geometry supports NEMA frame sizes 00 through 1 3/4, ensuring precise alignment and mechanical integrity during high-cycle industrial switching operations.
Constructed from heavy-duty materials to withstand the thermal and vibration stresses of an active motor control center (MCC), the 49ASMP1 simplifies the consolidation of Siemens motor control accessories. This plate eliminates the need for custom drilling or improvised brackets when upgrading older thermal overloads to modern SSOLR technology. Technicians can rely on the factory-standard hole patterns for a flush fit within existing enclosures, maintaining the required clearances for wiring and heat dissipation.
Key Benefits
- Compatible with Siemens Heavy Duty Starters and contactors across NEMA sizes 00, 0, 1, and 1 3/4.
- Specifically engineered to facilitate the mounting of ESP100 and ESP200 overload relays.
- Durable steel construction ensures long-term mechanical stability in harsh HVACR and industrial environments.
- Pre-drilled standard hole configurations reduce installation labor and minimize field errors.
Common Questions
Which NEMA sizes does this mounting plate support?
The Siemens 49ASMP1 is designed for NEMA sizes 00, 0, 1, and the specialized size 1 3/4 motor starters.
Can I use this for open-style contactors?
Yes, this plate is specifically designed for Open NEMA contactors where a secure mounting surface is required within an enclosure.
Is this plate required for ESP200 solid-state overload relay retrofits?
While and SSOLR can be direct-mounted in many configurations, using the 49ASMP1 ensures a professional, secure installation when standard mounting footprints do not align.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
