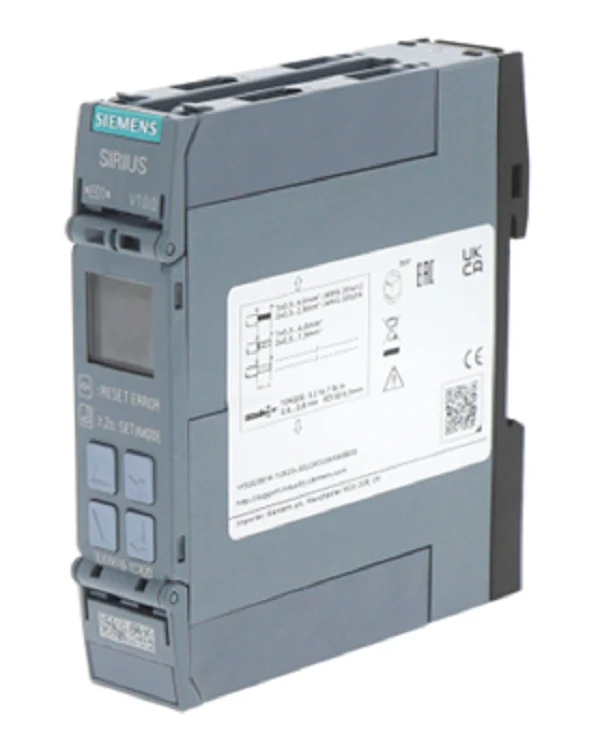

Siemens Industrial Controls 3UG5616-1CR20 Relay
The Siemens SIRIUS 3UG5616-1CR20 is a high-performance phase monitoring relay designed for precise diagnostics in industrial and HVACR environments. This digitally adjustable voltage monitoring relay provides comprehensive oversight for 3-phase systems, tracking phase sequence, failure, asymmetry, and frequency monitoring across a wide operating range of 90 to 690 V AC. As a successor to the legacy 3UG4 series, it incorporates an intuitive LCD display for real-time parameterization, replacing analog guesswork with exact setpoints for over- and under-voltage protection.
Engineered for reliability in unstable networks, the Siemens 3UG5616-1CR20 features two changeover (CO) contacts and convenient screw terminal connections for secure field wiring. Its 15 to 70 Hz frequency range makes it highly adaptable for diverse power infrastructures, ensuring that critical motor loads and compressors remain protected against electrical faults that cause premature failure. By utilizing this 3-phase monitoring relay, technicians can minimize downtime through early fault detection and clear status signaling, maintaining system integrity in complex industrial control applications.
Key Benefits:- Comprehensive Protection: Monitors phase failure, sequence, asymmetry, frequency, and voltage levels (90-690V) in a single digital unit.
- Digital Precision: Integrated LCD allows for exact parameter settings and simplified troubleshooting compared to analog dials.
- Field Reliability: Robust screw terminals ensure secure connections in high-vibration industrial or HVACR cabinet environments.
- Versatile Application: Wide frequency range (15-70 Hz) supports global power standards and specialized equipment demands.
- Does this relay require a neutral conductor? This specific model is designed for 3-phase systems; verify your wiring diagram for neutral connection requirements as some SIRIUS variants differ in N-conductor support.
- What is the primary benefit over the 3UG4 series? The 3UG5 series adds digital frequency monitoring and an LCD interface, providing better diagnostic data and configuration control.
- Can this handle both over-voltage and under-voltage simultaneously? Yes, the 3UG5616-1CR20 is a multifunctional unit that monitors upper and lower voltage thresholds independently with adjustable delay times.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
