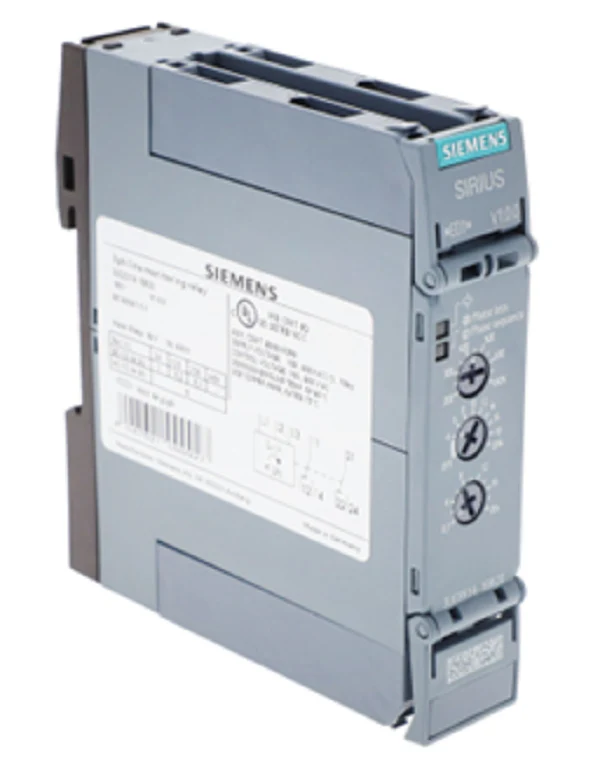

Siemens Industrial Controls 3UG5514-1BR20 Monitoring Relay
The Siemens 3UG5514-1BR20 is a high-performance digital monitoring relay designed for demanding industrial phase monitoring and line protection applications. This SIRIUS monitoring relay provides precise detection of phase sequence, phase failure, and phase asymmetry within 3-phase networks. Engineered for reliability, it ensures motor protection by monitoring overvoltage and undervoltage conditions, preventing equipment damage due to unstable power supply. The unit features a clear LCD display for real-time diagnostics and adjustable tripping delay settings, allowing technicians to fine-tune parameters for specific load characteristics. With its wide voltage range capability and IO-Link communication compatibility, this relay integrates seamlessly into modern automation architectures. This DIN rail mount relay is essential for maintaining operational integrity in HVACR systems, pump controls, and conveyor drives where voltage monitoring accuracy is critical to preventing downtime and electrical faults.
Key Benefits- Ensures 3-phase monitoring accuracy to prevent single-phasing and motor burnout.
- Adjustable parameter settings for undervoltage monitoring and asymmetry thresholds.
- Integrated LCD display provides immediate fault diagnostics and status updates.
- Compact 22.5 mm width optimizes space within industrial control panels.
- High electromagnetic compatibility (EMC) ensures stable performance in electrically noisy environments.
How do I configure the tripping delay on the 3UG5514-1BR20?
The delay settings are adjusted via the front-facing buttons and digital display, allowing for 0.1s to 20s adjustments to prevent nuisance tripping during transient voltage spikes.
Does this unit require an external power supply?
No, this line monitoring relay is self-powered from the measuring circuit, simplifying wiring in the control cabinet.
What happens if the phase sequence is incorrect during installation?
The relay will detect the improper phase sequence and keep the output contacts open, preventing the connected equipment from running in reverse and causing mechanical damage.
